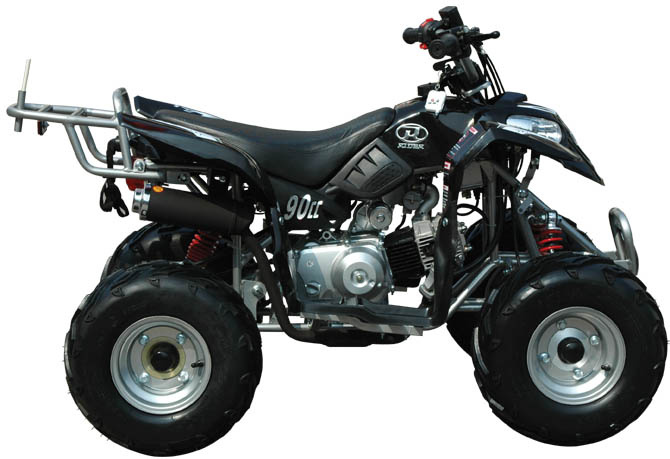

Home Zhejiang Rider Industry&Trade Co.,Ltd. ATV (LD90A-7)
| Prod Model: | LD90A-7 |
|---|
Product Description
Art. NO.: LD90A-71> ENGINE INFO:
Engine brand: LIFAN
Engine Type: Air-cooling, 4-strokes, single
Compression Ratio: 8.5: 1
Lubrication: Pressure
Lubricant: SAE 15W/40 SE(GB11121-1995)
Displacement: 90CC
Max power: 4.4KW/7500r/min
Max torque: 5.5N. M/4500r/min
Bore*stroke(mm): 47x49.5
Tire Pressure(kpa): ≤69
Max Speed (km/h): ≤48
Ignition: CDI
Starting system: Electric
Battery: 12V-5A
2> CHASSIS ETC:
Clutch: Automatic
Driveline: Chain-drive
Driving wheel: Rear wheel drive
Brakes, front/rear: Drum/Disk
Brake operation: Hand
Tires, front/rear: 16*8-7 / 16*8-7
Weight, G. W. /N. W: 100kgs / 80kgs
Max load: 80kgs
3> DIMENSIONS:
Wheelbase (mm): 830
OA L*W*H (mm): 1400x750x890
Min ground clearance(mm): 75
Carton size (mm): 1150x750x660
Shipping info:
20'GP: 45pcs
40'GP: 90pcs
40'HQ: 120pcs
Zhejiang Rider Industry&Trade Co., Ltd., is a specialized producer of ATV's, Go Karts, Dirt Bikes and Sports vehicles Enterprise. It is well-known for it's superior quality and excellent service, through generations of experience and using sophisticated technological advances in manufacturing and production. We can offer you the most superior products on the market today. Our products are widely used and sold in America, Brazil, Italy, Germany, Australia, South Korea and South Africa with the certification of ISO9002 and CE.
