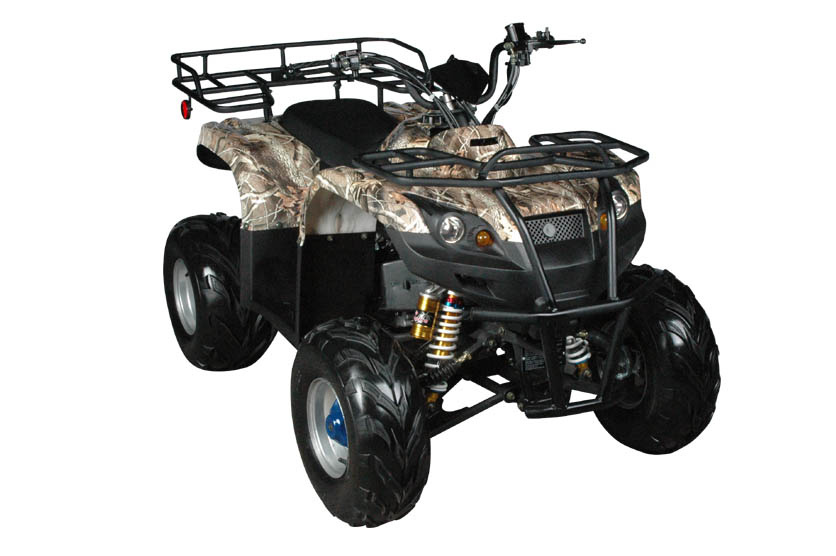

Home Zhejiang Rider Industry&Trade Co.,Ltd. ATV (LD150A-5)
Specifications
| Prod Model: | LD150A-5 |
|---|
Product Description
Art. NO.: LD150A-51> ENGINE INFO:
Engine brand: WANGYE
Engine Type: Strong air-cooling, 4-strokes, single
Compression Ratio: 9.2: 1
Lubrication: Pressure
Lubricant: SAE 20W/40 SE(GB11121-1995)
Displacement: 150CC
Max power: 6kw/7000r/min
Max torque: 8.3NM/6000r/min
Bore*stroke(mm): 57.4x57.8
Tire Pressure(kpa): ≤69
Max Speed (km/h): ≤50
Ignition: CDI
Starting system: Electric
Battery: 12V-9A
2> CHASSIS ETC:
Driveline: Chain-drive
Driving wheel: Rear wheel drive
Brakes, front/rear: Drum/Disk
Brake operation: Hand
Tires, front/rear: 19x7-8/18x9.5-8
Weight, G. W. /N. W: 175kgs /150kgs
Max load: 95kgs
3> DIMENSIONS:
Wheelbase (mm): 1060
OA L*W*H (mm): 1700x1070x1000
Min ground clearance(mm): 70
Tread: Front/rear (mm): 770 / 760
Carton size (mm): 1510x820x780
Shipping info:
20'GP: 30pcs
40'GP: 63pcs
40'HQ: 63pcs
