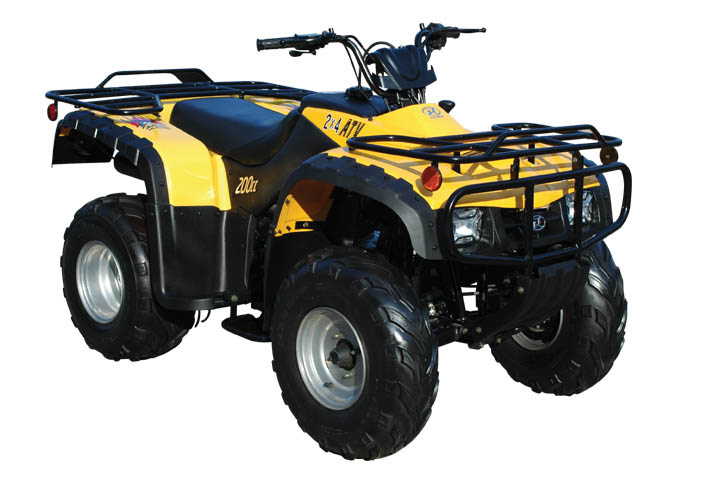

ATV LD200A-2)

Specifications

Prod Model:	LD200A-2

Product Description

Art. NO.: LD200A-2
1> ENGINE INFO:
Engine brand: LIFAN
Engine Type: Air-cooling, 4-strokes, single, reverse gear inside
Compression Ratio: 9.0: 1
Lubrication: Pressure
Lubricant: SAE 15W/40 SE(GB11121-1995)
Displacement: 200CC
Max power: 12.5kw/8500r/min
Max torque: 15.0N. M/7000r/min
Bore*stroke(mm): 63.5x62.2
Tire Pressure(kpa): ≤69
Max Speed (km/h): ≤60
Ignition: CDI
Starting system: Electric
Battery: 12V-9A

2> CHASSIS ETC:
Clutch: Manual
Driveline: Chain-drive
Driving wheel: Rear wheel drive
Brakes, front/rear: Drum
Brake operation front / rear: Hand / foot
Tires, front/rear: 23x7-10 / 22x10-10
Weight, G. W. /N. W: 240kgs / 220kgs
Max load: 95kgs

3> DIMENSIONS:
Wheelbase (mm): 1160
OA L*W*H (mm): 1860x1030x1110
Min ground clearance(mm): 170
Carton size (mm): 1965x1110x880
Shipping info:
20'GP: 10pcs
40'GP: 24pcs
40'HQ: 36pcs
