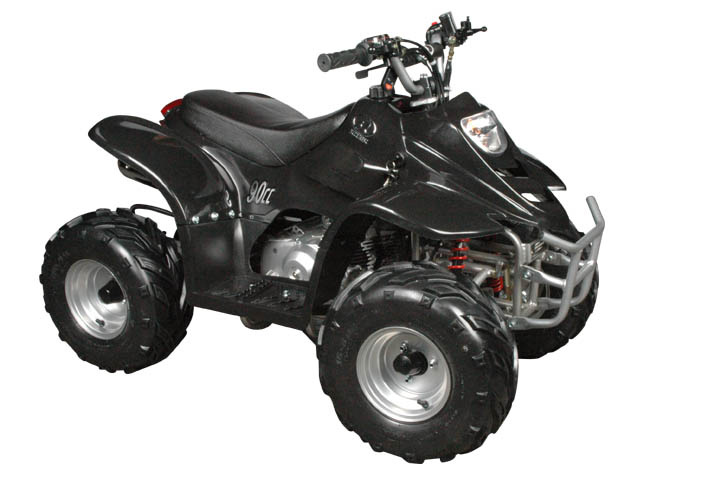

Home Zhejiang Rider Industry&Trade Co.,Ltd. ATV (LD90A-4)
Specifications
| Prod Model: | LD90A-4 |
|---|
Product Description
Art. NO.: LD90A-41> ENGINE INFO:
Engine brand: LIFAN
Engine Type: Air-cooling, 4-strokes, single
Compression Ratio: 8.5: 1
Lubrication: Pressure
Lubricant: SAE 15W/40 SE(GB11121-1995)
Displacement: 90CC
Max power: 4.4KW/7500r/min
Max torque: 5.5N. M/4500r/min
Bore*stroke(mm): 47x49.5
Tire Pressure(kpa): ≤69
Max Speed (km/h): ≤50
Ignition: CDI
Starting system: Electric
Battery: 12V-5A
2> CHASSIS ETC:
Clutch: Automatic
Driveline: Chain-drive
Driving wheel: Rear wheel drive
Brakes, front/rear: Drum/Disk
Brake operation: Hand
Tires, front/rear: 16*8-7 / 16*8-7
Weight, G. W. /N. W: 120kgs / 105kgs
Max load: 80kgs
3> DIMENSIONS:
Wheelbase (mm): 815
OA L*W*H (mm): 1190x660x830
Min ground clearance(mm): 65
Carton size (mm): 1150x690x660
Shipping info:
20'GP: 48pcs
40'GP: 102pcs
40'HQ: 136pcs
