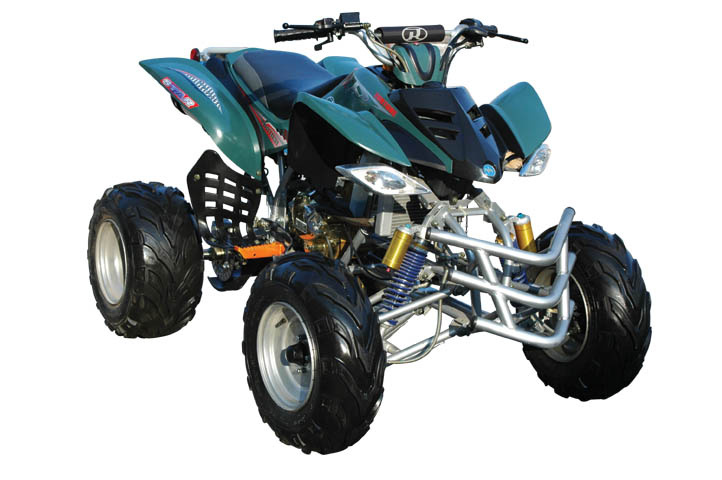

ATV (LD200A-6)

Specifications

Prod Model:	LD200A-6

Product Description

Art. NO.: LD200A-6
1> ENGINE INFO:
Engine brand: LIFAN
Engine Type: Air-cooling, 4-strokes, single reverse gear inside
Compression Ratio: 10.16: 1
Lubrication: Pressure
Lubricant: SAE 15W/40 SE(GB11121-1995)
Displacement: 200CC
Max power: 12.0 kw/8000 r/min
Max torque: 15.0 N. M/6000 r/min
Bore*stroke(mm): 63.5x62.2
Tire Pressure(kpa): ≤69
Max Speed (km/h): ≤65
Ignition: CDI
Starting system: Electric
Battery: 12V-9A

2> CHASSIS ETC:
Clutch: Manual
Driveline: Chain-drive
Driving wheel: Rear wheel drive
Brakes, front/rear: Drum / Disk
Brake operation front / rear: Hand / foot
Tires, front/rear: 21x7-10 / 21x7-10
Weight, G. W. /N. W: 190kgs / 175kgs
Max load: 95kgs

3> DIMENSIONS:
Wheelbase (mm): 1160
OA L*W*H (mm): 1840x1070x1090
Min ground clearance(mm): 130
Carton size (mm): 1450x880x870
Shipping info:
20'GP: 20pcs
40'GP: 42pcs
40'HQ: 63pcs
