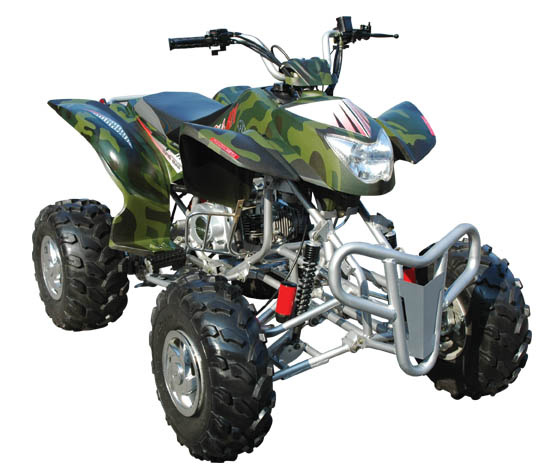

ATV (LD110A)

Specifications

Prod Model:	LD110A

Product Description

Art. NO.: LD110A
1> ENGINE INFO:
Engine brand: LIFAN
Engine Type: Air-cooling, 4-strokes, single
Compression Ratio: 9.0: 1
Lubrication: Pressure
Lubricant: SAE 15W/40 SE(GB11121-1995)
Displacement: 110CC
Max power: 5.2kw/7500(r/min)
Max torque: 7.0NM/5000(r/min)
Bore*stroke(mm): 52.4x49.5
Tire Pressure(kpa): ≤69
Max Speed (km/h): ≤60
Ignition: CDI
Starting system: Electric
Battery: 2V-7A

2> CHASSIS ETC:
Driveline: Chain-drive
Driving wheel: Rear wheel drive
Brakes, front/rear: Drum/Disk
Brake operation: Hand
Tires, front/rear: 19x7-8 / 18x9.5-8
Weight, G. W. /N. W: 150kgs / 135kgs
Max load: 95kgs

3> DIMENSIONS:
Wheelbase (mm): 1085
OA L*W*H (mm): 1740x1040x1140
Min ground clearance(mm): 115
Carton size (mm): 1470x840x780
Shipping info:
20'GP: 30pcs
40'GP: 65pcs
40'HQ: 66pcs
