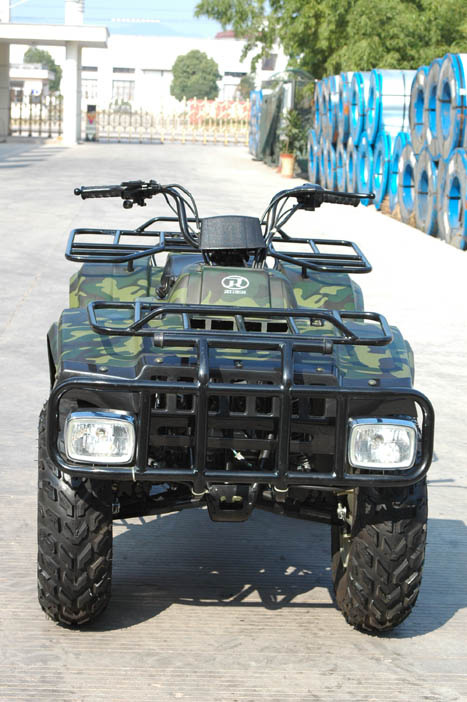

Home Zhejiang Rider Industry&Trade Co.,Ltd. ATV (LD250A)
| Prod Model: | LD250A |
|---|
Product Description
Art. NO.: LD250A1> ENGINE INFO:
Engine brand: LIFAN
Engine Type: Air-cooling, 4-strokes, double
Compression Ratio: 9.2: 1
Lubrication: Pressure
Lubricant: SAE 15W/40 SE(GB11121-1995)
Displacement: 250CC
Max power: 13kw/8500r/min
Max torque: 15N. M/ 7000r/min
Bore*stroke(mm): 53x53
Tire Pressure(kpa): ≤69
Max Speed (km/h): ≤70
Ignition: CDI
Starting system: Electric
Battery: 12V-12A
2> CHASSIS ETC:
Clutch: Manual
Driveline: Chain-drive
Driving wheel: Rear wheel drive
Brakes, front/rear: Drum
Brake operation front / rear: Hand / foot
Tires, front/rear: 23x7-10 / 22x10-10
Weight, G. W. /N. W: 260kgs / 240kgs
Max load: 100kgs
3> DIMENSIONS:
Wheelbase (mm): 1200
OA L*W*H (mm): 1890x1030x1100
Min ground clearance(mm): 190
Carton size (mm): 1930x1055x860
Shipping info:
20'GP: 12pcs
40'GP: 24pcs
40'HQ: 36pcs
Zhejiang Rider Industry&Trade Co., Ltd., is a specialized producer of ATV's, Go Karts, Dirt Bikes and Sports vehicles Enterprise. It is well-known for it's superior quality and excellent service, through generations of experience and using sophisticated technological advances in manufacturing and production. We can offer you the most superior products on the market today. Our products are widely used and sold in America, Brazil, Italy, Germany, Australia, South Korea and South Africa with the certification of ISO9002 and CE.
