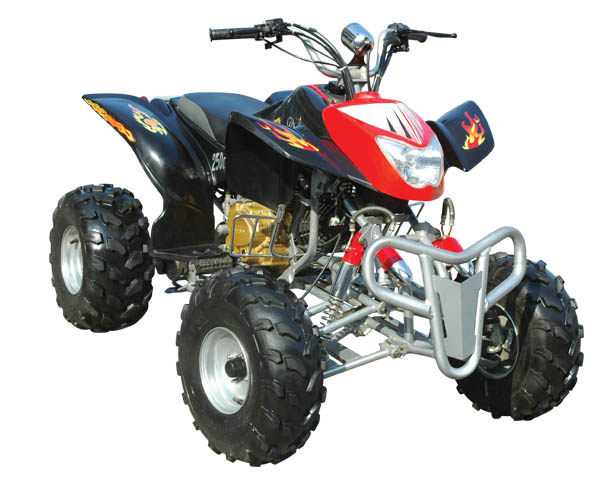

ATV (LD250A-3)

Specifications

Prod Model:	LD250A-3

Product Description

Art. NO.: LD250A-3
1> ENGINE INFO:
Engine brand: LIFAN
Engine Type: Air-cooling, 4-strokes, single
Compression Ratio: 9.0: 1
Lubrication: Pressure
Lubricant: SAE 15W/40 SE(GB11121-1995)
Displacement: 250CC
Max power: 14.5kw/7000r/min
Max torque: 16.5N. M/6000r/min
Bore*stroke(mm): 67.0*66
Tire Pressure(kpa): ≤69
Max Speed (km/h): ≤70
Ignition: CDI
Starting system: Electric
Battery: 12V-9A

2> CHASSIS ETC:
Clutch: Manual
Driveline: Chain-drive
Driving wheel: Rear wheel drive
Brakes, front/rear: Drum/Disk
Brake operation front / rear: Hand / foot
Tires, front/rear: 19x7-8 / 18x9.5-8
Weight, G. W. /N. W; 160kgs / 145kgs
Max load: 95kgs

3> DIMENSIONS:
Wheelbase (mm): 1120
OA L*W*H (mm): 1720x1030x1120
Min ground clearance(mm): 120
Carton size (mm): 1470x840x780
Shipping info:
20'GP: 30pcs
40'GP: 65pcs
40'HQ: 66pcs
