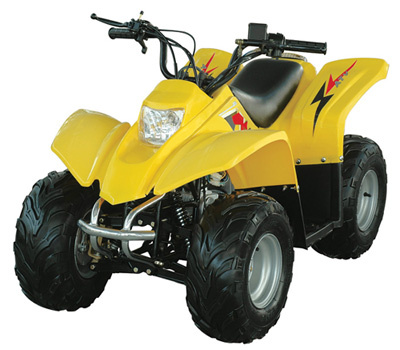

Home Zhejiang Cavalier Motion Apparatus Co., Ltd. ATV 90CC,110cc (WJ50ST-3)
Specifications
| Prod Model: | WJ50ST-3 |
|---|
Product Description
Engine: 4-stroke, one cylinder, air-cooledEngine displacement (cc): 49
Bore x Stroke (mm): 41 x 37
Max Power (KW / rpm): 2.4/5900
Max Torque (N. M / rpm): 3.9/5500
Compression Ratio: 7.8: 1
Max speed: 50km/h
Start mode: Electric start
Transmission mode: Chain
Shift speed type: CVT
Brake system (front/rear): Drum / Disk
Tire Size (front / rear): 145 x 70-6 /145 x 70-6
Front suspension: Double A swing arm
Rear suspension: Monoshock swing arm
Dimension (L x W x H)(mm): 1335 x 730 x 780
Seat Height(mm): 542
Load capability: 45kg
Ground Clearance(mm): 110
Outer packing:
Carton dimensions(mm): 1310 x 750 x 630
N. W.: 90kg
G. W.: 115kg
Conveyance:
Qty/20' FCL: 39pcs
Qty/40' FCL: 84pcs
Qty/40' HQ: 118pcs
