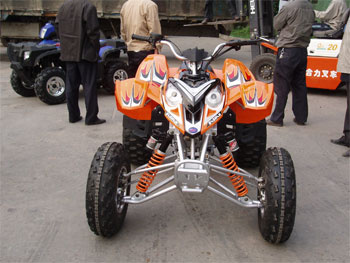

ATV 350cc Polaris Style-WJ350ST

Specifications

Prod Model:	WJ350ST

Product Description

1) Dimensions (L x W x H): 184 x 120 x 117 cm
2) Wheel base: 123mm
3) Engine type: Single cylinder, air-cooling, 4-stroke
4) Start mode: Electric
5) Power: 14.7kW/8, 000rpm
6) Max. Torque: 20N. M/6,000rpm
7) Max. Speed: 85km/h
8) Min. Ground clearance: 113mm
9) Dry weight: 190kg
10) Transmission mode: Chain
11) Break type (F/R): Disc / disc
12) Power source: 12V, 20Ah
13) Climbing degree: 30
14) Fuel tank capacity: 10L
15) Front hanging: Double arm-swing
16) Rear hanging: Integral
17) Tires:
A) Front wheels: 21x 7-10
B) Rear wheels: 20 x 11-9
18) Cylinder size: 83 x 64.5mm
19) Displacement: 329mL
20) Transmission: 6 gears with reverse gear, manual clutch
21) Height of seats: 860mm
22) Min. Turning radius: 300cm
23) Parking trig: Mechanical lock
24) Ignition mode: CDI
25) Load capacity: 150kg
26) Engine oil: 1.3L
27) Max. Number of riders: 1
28) Lubrication: Press splash
30) Gas cylinder number: 1

Outer packing:
Dimensions: 195x 112 x 88cm

Conveyance:
Qty/20' GP: 10 units
Qty/40' GP: 24 units
