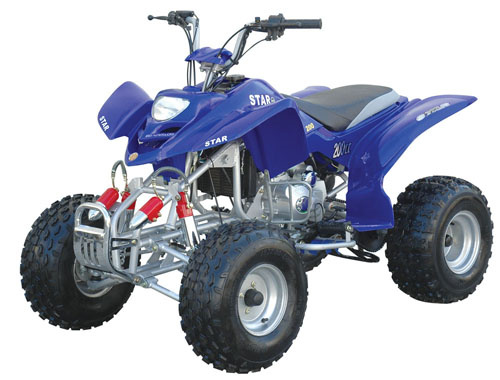

ATV 200cc Raptor Style(WJ200ST-2)
| Price: | Negotiable |
|---|---|
| Min Order: | 6/Piece |
| Pay Type: | L/C,T/T |
| Prod Model: | WJ200ST-2 |
|---|
Product Description
Engine: 4-stroke, one cylinder, water-cooled,Engine displacement (cc): 200
Bore x Stroke (mm): 52.4 x 49.5
Max Power (KW / rpm): 11. 5/8000
Max Torque (N. M / rpm): 13/6,500
Compression Ratio: 9.1: 1
Max speed: 75km/h
Start mode: Electric start
Transmission mode: Chain
Shift speed type: Four speeds with reverse gear
Brake system (front/rear): Drum/ Disk
Tire Size (front / rear): 19 x 7-8 / 18 x 9.5-8
Front hanging: Double Arm-swing
Rear hanging: Monoshock swing arm
Front shock absorbers: Air chamber
Dimension (L x W x H)(mm): 1510 x 810 x 1010
Seat Height(mm): 800
Load capability: 100kg
Ground Clearance(mm): 140
Outer packing:
Carton dimensions(mm): 1485 x 835 x 770
N. W.: 150kg
G. W.: 170kg
Conveyance:
Qty/20' FCL: 29pcs
Qty/40' FCL: 64pcs
Qty/40' HQ: 66pcs
Zhejiang Cavalier Motion Apparatus Co., Ltd., is a High and new technique business enterprise, it covers an area of 10, 000 square meters, owns more than RMB20, 000, 000 fixed assets and 500 staffs. And 10 of the 500 have senior titles. Since operation, we have been emphasizing on devcloping the new production line in China, adoping international standard technology and continuing to South-east Asian, Europe and America are well received by the customcrs at home and abroad.
