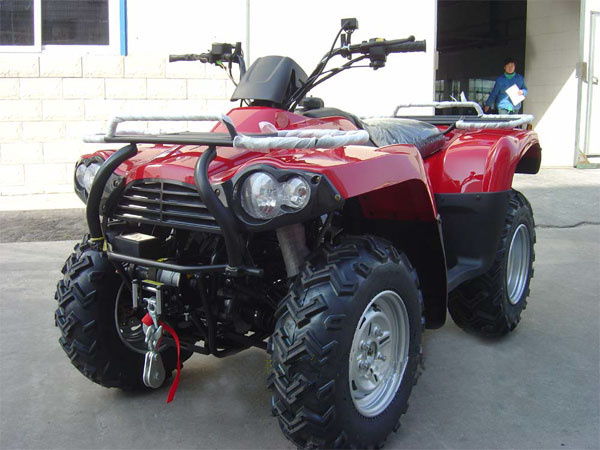

ATV 400cc 4x4-WJ420ST

Specifications

Prod Model:	WJ420ST

Product Description

1) Engine: 391cc, 4-stroke, water-cooled
2) Drive: 4 wheel drive
3) Brake: Front and rear disc brakes

Specification:
1) Dimensions (L x W x H): 2,100 x 1,125 x 1,175mm
2) Wheelbase: 1,240mm
3) Front gauge: 870mm
4) Rear gauge: 826mm
5) Seat height: 860mm
6) Engine type: Single-cylinder, air/oil-cooled, 4-stroke
7) Transmission: Semi-automatic, shift drive, gear without clutch
8) Max. Speed: 75km/h
9) Max. Climb ability: Not less than 30
10) Tire front: AT 25 x 8-12
11) Tire rear: AT 25 x 10-12
12) Type of tire: Tubeless
13) Compression ratio: 8.7: 1
14) Rate power: 16.5kW (6,000r/min)
15) Max. Torque: 28N. M (5,500r/min)
16) Ignition: CDI
17) Starter: Kick / electric starter
18) Shift type: 6 speed, 5 forward gear and 1 reverse gear
19) Acceleration performance: 15s/200m, 13s/200m
20) Battery: 12V, 18Ah
21) Colors: Red, green, green camouflage, autumn camouflage

Outer packing:
Steel frame with carton
N. W.: 270kg
G. W.: 400kg

Conveyance:

Qty/20' FCL: 8pcs
Qty/40' FCL: 16pcs
Qty/40' HQ: 30pcs
