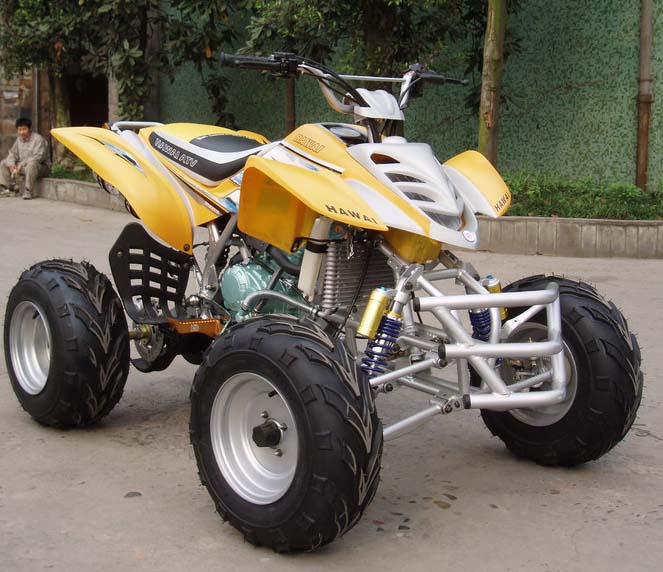

ATV 200cc With Alloy Rim Bumps And Improved Shock Absorber (WJ200ST-3)
| Price: | Negotiable |
|---|---|
| Min Order: | 6/Piece |
| Pay Type: | L/C,T/T |
Specifications
| Prod Model: | WJ200ST-3 |
|---|
Product Description
Lengthx Widthx Height(mm): 1800x 1120x 1129Wheelbase(mm): 1149
Engine type: Single, water cool, four strock
Start mode: Electrical
Power (kW/r/min): 10.3KW/7499r/min
Max-Torque (N. M/r/min: 15N. M/5999r/min
Max-speed: 75
Mini Ground Clearance (mm): 120
Dry weight(Kg): 155
Transmission mode: Chain
Break type(F/R): Drum/disk
Battery Specification: A/H 12V9Ah
Climb degree: 20
Tank capacity (L): 4
Front hanging: Air shock absorber
Rear hanging: Inner air shock absorber
Specification of tyre: Front 21x 7-10
Rear 20x 10-10
Cylinder diameter*journey(mm): 63.5x 62.2
Displacement (ml): 197
Shift Gear: 4 forward, 1backwark, manual clutch
Height of seats(mm): 880
The smallest turning semidiameter(mm): 2650
Parking trig: Manchanic lock
Ignition mode: CDI
Loading capacity(kg): 150
Engine oil (L): 1
Person: 1
Lubrication: Depress splash
Compression proportion: 9.2: 1
Gas cylinder number: 1
Parking dimension(mm): 1480x 950x 880
20'14 UNITS
Quantity of loading: 40' 32 UNITS
40HQ 48 UNITS
