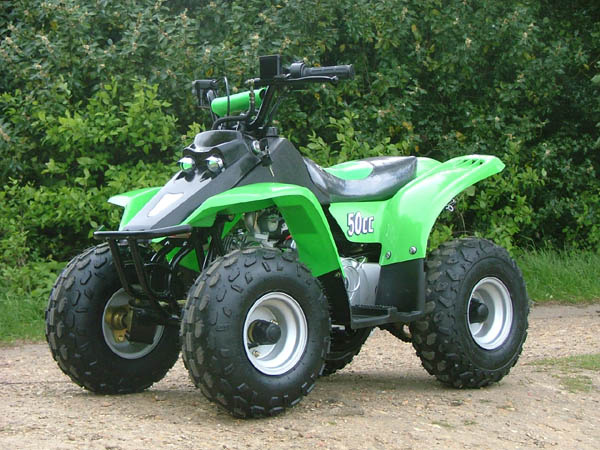

Home Zhejiang Cavalier Motion Apparatus Co., Ltd. ATV 50cc,70cc (WJ50ST)
Specifications
| Prod Model: | WJ50ST |
|---|
Product Description
Engine: 4-stroke, one cylinder, air-cooledEngine displacement (cc): 49
Max Power (KW /(r/min)): 3.0/7500
Max Torque (N. M /(r/min)): 4.2/5500
Compression Ratio: 7: 1
Max speed: 40km/h
Start mode: Electric start
Transmission mode: Chain
Shift speed type: CVT
Brake system: Rear disk brake
Tire Size (front / rear): 145 x 70-6 / 145 x 70-6
Front suspension: Double A swing arm
Rear suspension: Monoshock swing arm
Dimension (L x W x H)(mm): 1120 x 730 x 755
Seat Height(mm): 670
Load capability: 80kg
Ground Clearance(mm): 110
Outer packing:
Carton dimensions(mm): 1130 x 670 x 665
N. W.: 63kg
G. W.: 71kg
Conveyance:
Qty/20' FCL: 51pcs
Qty/40' FCL: 102pcs
Qty/40' HQ: 136pcs
