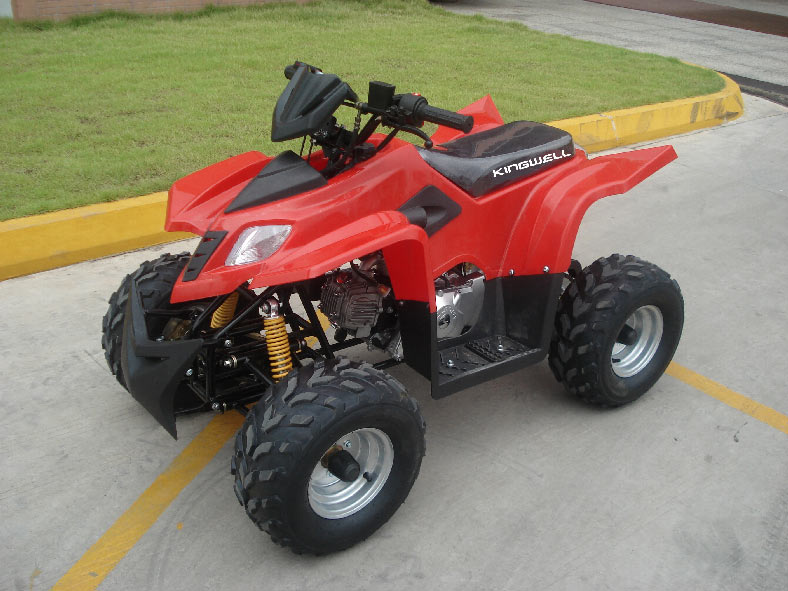

50CC to 110CC ATV (KWS7-Q110)

Specifications

Prod Model:	KWS7-Q110

Product Description

Certificate: 50cc to 110cc atv, ce approval
1) Engine type: 90cc/110cc, air-cooled, single cylinder, 4 strokes.
2) Displacement: 106.7mL
3) Max. Power(Kw/r/min): 5.0/8, 500
4) Max. Torque(N. M/r/min): 6.7/6, 000
5) Compression rate: 9.7: 1
6) Drive system: Chain
7) Clutch: Automatic clutch
8) Brake: Rear hydraulic disc brake
9) Tire: 16X8.0-7(F/R)
10) Max. Speed: 60km/h
11) Battery: 12V x 4Ah
12) Seat height: 660mm
13) Wheelbase: 920mm
14) Ground clearance: 100mm
15) Suspension: Front and rear hydraulic suspension with double swing arms
16) Ignition type: CDI
17) Start system: Electric start
18) Dimensions: 1, 400 X 800 X 940
19) Max. Load: 150Kg

Packing: Steel frame and carton
Carton dimensions: 1, 300mm*720mm*670mm

Container:
36pcs/20' FCL, 81pcs/40' FCL, 108pcs/40' HQ
N. W: 78Kgs
G. W: 100Kgs
