Home Zhejiang Kingwell Sports Vehicle Co., Ltd. 300CC ATV 4x4 Utlity Style EEC Approval (KWS14-Q300)

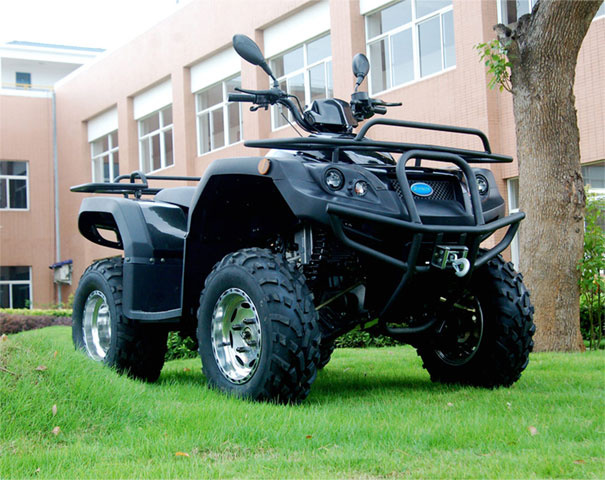

300CC ATV 4x4 Utlity Style EEC Approval (KWS14-Q300)
| Price: | Negotiable |
|---|---|
| Min Order: | 1 |
Specifications
| Prod Model: | KWS14-Q300 |
|---|
Product Description
Certificate: 300cc atv, eec approval1. Engine type: 300cc, water-cooled, single cylinder, 4 strokes, with reverse gear
2. Displacement: 278ml
3. Max. Power(Kw/r/min): 14.8 / (6500+-5%) (Kw/r/min)
4. Max. Torque(N. M/r/min): 23.0 / (6000+-5%) (N. M/r/min)
5. Compression rate: 10.0: 1
6. Drive system: Shaft, 4X4
7. Clutch: Automatic clutch
8. Brake: Front and rear hydraulic disc brake
9. Tire: 25X8-12(F), 25X10-12(R)
10. Max. Speed: 75km/h
11. Battery: 12V x 14Ah
12. Seat Height: 850mm
13. Wheel base: 1280mm
14. Ground clearance: 180mm
15. Suspension: Front and rear hydraulic suspension
16. Ignition type: TCI
17. Start system: Electric start
18. Dimension: 2, 180mm X 1, 190mm X 1, 225mm
19. Max. Load: 200kgs
20. Fuel & tank capacity: ≥93# gasoline& ≤9.5L
Packing: Steel frame and carton
Container:
N. W.: 315Kgs
G. W.: 355Kgs
