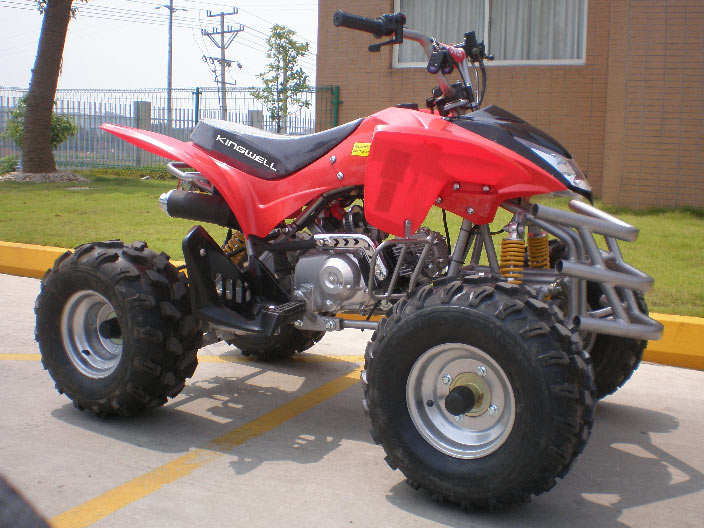

Home Zhejiang Kingwell Sports Vehicle Co., Ltd. 110CC ATV (KWS9-Q110)
| Prod Model: | KWS9-Q110 |
|---|
Product Description
Certificate: 110cc atv, ce approval1) Engine type: 90cc/110cc, air-cooled, single cylinder, 4 strokes.
2) Displacement: 106.7ml
3) Max. Power(Kw/r/min): 5.0/8, 500
4) Max. Torque(N. M/r/min): 6.7/6, 000
5) Compression rate: 9.7: 1
6) Drive system: Chain
7) Clutch: Automatic clutch
8) Brake: Rear hydraulic disc brake
9) Tire: 19X7.0-8(F), 18X9.5-8(R)
10) Max. Speed: ≥60km/h
11) Battery: 12V x 5Ah
12) Seat height: 730mm
13) Wheel base: 940mm
14) Ground clearance: 85mm
15) Suspension: Front and rear hydraulic suspension with double swing arms
16) Ignition type: CDI
17) Start system: Electric start
18) Dimensions: 1, 500 * 880 * 980mm
19) Max. Load: 150Kgs
Packing:
Steel frame and carton
Carton dimensions: 1, 310mm*940mm*730mm
Container:
30pcs/20' FCL, 63pcs/40' FCL, 63pcs/40' HQ
N. W.: 100Kgs
G. W.: 116Kgs
We are Zhejiang Kingwell sports vehicle Co., Ltd. We is a modern enterprise that manufactures a wide range of ATVs, dirt bikes, go karts, and other recreational vehicles.
Our company is located in the Yongkang city Hardware, Science and Technology Industrial Park in Zhejiang Province, China. Our factory occupies 50, 000 square meters and has more than USD25 million in fixed assets.
Our company is located in the Yongkang city Hardware, Science and Technology Industrial Park in Zhejiang Province, China. Our factory occupies 50, 000 square meters and has more than USD25 million in fixed assets.
