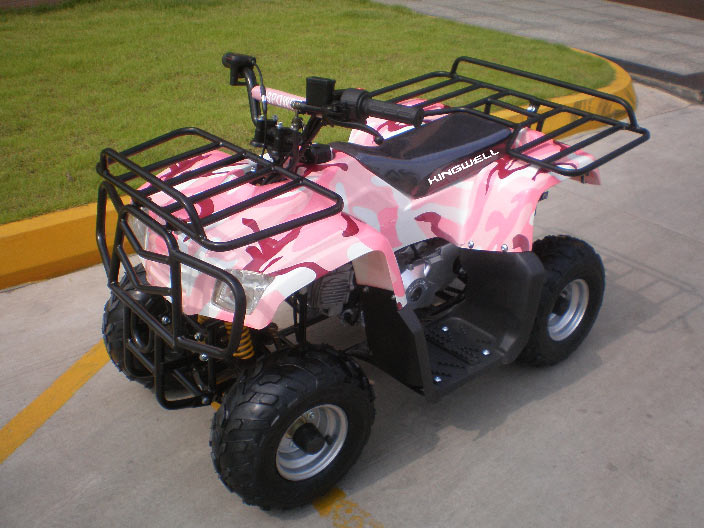

110CC ATV (KWS11-Q110)

Specifications

Prod Model:	KWS11-Q110

Product Description

1) Engine type: 110cc atv, air-cooled, single cylinder, 4 strokes.
2) Displacement: 106.7ml
3) Max. Power(Kw/r/min): 5.0/8500
4) Max. Torque(N. M/r/min): 6.7/6000
5) Compression rate: 9.7: 1
6) Drive system: Chain
7) Clutch: Automatic clutch
8) Brake: Rear hydraulic disc brake
9) Tire: 14.5X7.0-6(F/R) or 16X8.0-7
10) Max. Speed: ≥60km/h
11) Battery: 12V x 5Ah
12) Seat height: 560mm
13) Wheel base: 800mm
14) Ground clearance: 80mm
15) Suspension: Front and rear hydraulic suspension with double swing arms
16) Ignition type: CDI
17) Start system: Electric start
18) Dimensions: 1, 230 X 710 X 830
19) Max. Load: 150Kg

Packing:
Steel frame and carton
Carton dimensions:
1, 160mm*790mm*660mm
Container:
42pcs/20' FCL, 84pcs/40' FCL, 112pcs/40' HQ
N. W.: 76Kgs
G. W.: 94Kgs
