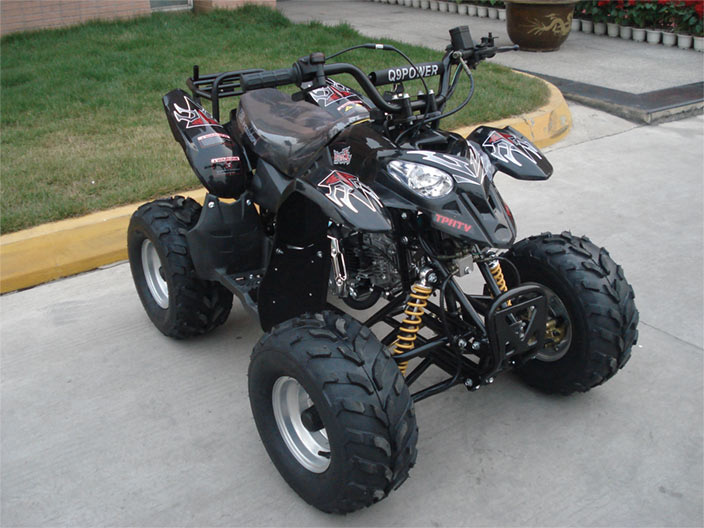

110CC ATV (KWS8-Q110)

Specifications

Prod Model:	KWS8-Q110

Product Description

Certificate: 110cc atv, ce approval
1) Engine type: 50cc/70cc/90cc/110cc, air-cooled, 4 strokes, fully automatic
2) Displacement: 106.7ml
3) Max. Power(Kw/r/min): 5.0/8, 500
4) Max. Torque(N. M/r/min): 6.7/6, 000
5) Compression rate: 9.7: 1
6) Drive system: Chain
7) Clutch: Automatic clutch
8) Brake: Rear hydraulic disc brake
9) Tire: 16X8.0-7(F/R)
10) Max. Speed: ≥60km/h
11) Battery: 12V x 5Ah
12) Seat height: 600mm
13) Wheel base: 840mm
14) Ground clearance: 100mm
15) Suspension: Front and rear hydraulic suspension with double swing arms
16) Ignition type: CDI
17) Start system: Electric start
18) Dimensions: 1, 380 X 820 X 880mm
19) Max. Load: 150Kg

Packing:
Steel frame and carton
Carton dimensions: 1, 180mm*750mm*590mm
Container: 60pcs/20' FCL, 120pcs/40' FCL, 120pcs/40' HQ
N. W.: 73Kgs
G. W.: 83Kgs
