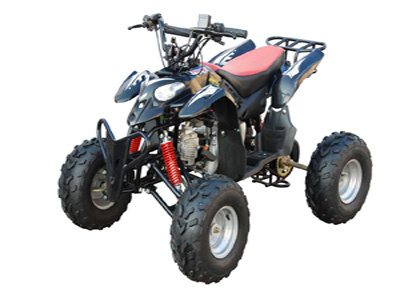

Youth Size 110CC ATV (ATV04)

Specifications

Prod Model:	ATV04

Product Description

Description:
Engine: 110cc, Single cylinder, air cooling, 4 stroke
LxWxH(mm): 1320x780x880
Wheel base: 800mm
Seat height(mm): 610mm
Ground clearance(mm): 90mm
Brake: Drum(F) disc(R)
Transmission system: Chain
Tire: 16x8-7(F) 16x8-7(R)
Load(kg): 120kg
Fuel tank capacity(gallon)(L): 3.2L
Maximum speed(km/h)"55km/h
Starter system: Electric starter
Maximum power(Kw/rpm): 5.5kw/8500rpm
Maximum torque(Nm/rpm): 6.5nm/5500-6500rpm
N. W. /G. W.: 75kg/98kg
Carton size: 1330x770x630mm
Container: 36pcs/20'Qty 81pcs/40'Qty 108pcs/40'HQ
