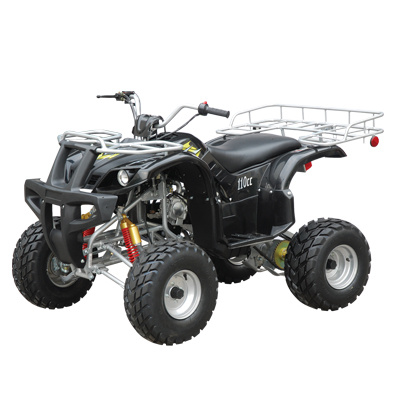

Mid Size 110cc ATV (ATV13)

Specifications

Prod Model:	ATV13

Product Description

Engine: 110CC, Single cylinder, air cooling, 4 stroke
LxWxH(mm): 1765x1050x1145
Wheel base: 1110mm
Seat height(mm): 850mm
Ground clearance(mm): 110mm
Brake: Drum(F) disc(R)
Transmission system: Chain
Tire: 21x8-10(F) 20x10-10(R)
Load(kg): 150kg
Fuel tank capacity(gallon)(L): 7.8L
Maximum speed(km/h): 60km/h
Starter system: Electric starter
Maximum power(Kw/rpm): 4.8kw/8000rpm
Maximum torque(Nm/rpm): 5.7nm/6000-6500rpm
N. W. /G. W.: 135kg/160kg
Carton size: 1500x830x870mm
Container: 20pcs/20'Qty 42pcs/40'Qty 63pcs/40'HQ
