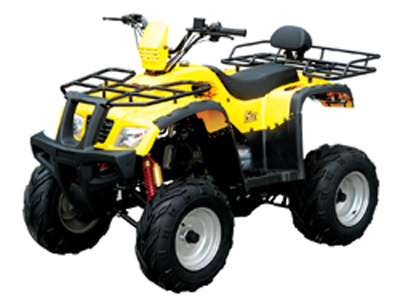

Full Size 150cc ATV (ATV22)

Specifications

Prod Model:	ATV22

Product Description

Engine: 150CC, Single cylinder, air cooling, 4 stroke
LxWxH(mm): 1730x1000x1150
Wheel base: 1120mm
Seat height(mm): 860mm
Ground clearance(mm): 160mm
Brake: Drum(F) disc(R)
Transmission system: Chain
Tire: 19x7-8(F) 18x9.5-8(R)
Load(kg): 200kg
Fuel tank capacity(gallon)(L): 5L
Maximum speed(km/h): 80km/h
Starter system: Electric/kick starter
Maximum power(Kw/rpm): 8.0kw/7500rpm
Maximum torque(Nm/rpm): 10.7nm/6500rpm
N. W. /G. W.: 155kg/187kg
Carton size: 1510x820x860mm
Container: 20pcs/20'Qty 42pcs/40'Qty 63pcs/40'HQ
