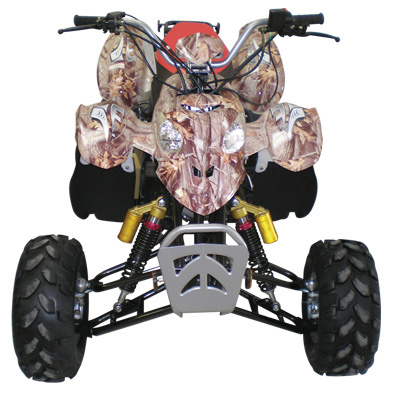

Full Size 150cc ATV (ATV24)

Specifications

Prod Model:	ATV24

Product Description

Engine: 150CC, Single cylinder, air cooling, 4 stroke
LxWxH(mm): 1810x1035x1140
Wheel base: 1170mm
Seat height(mm): 840mm
Ground clearance(mm): 100mm
Brake: Drum(F) disc(R)
Transmission system: Chain
Tire: 19x7-8(F) 18x11-8(R)
Load(kg): 225kg
Fuel tank capacity(gallon)(L): 5L
Maximum speed(km/h): 60km/h
Starter system: Electric starter
Maximum power(Kw/rpm): 8.0kw/8000rpm
Maximum torque(Nm/rpm): 10.7nm/6000-6500rpm
N. W. /G. W.: 130kg/155kg
Carton size: 1460x840x870mm
Container: 20pcs/20'Qty 44pcs/40'Qty 66pcs/40'HQ
