Specifications
Prod Model: |
PB2620 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
26" Steel Painted Adult Scooter: |
26 Inches |
Max Capacity: |
>100kg |
Kind: |
Single |
Height Adjustment: |
Height Adjustment |
Color: |
Black |
Wheels: |
2 |
Age: |
Adult |
Body Material: |
Alu+ Iron |
Wheel Material: |
Metal |
Certification: |
CE |
Condition: |
New |
Product Description

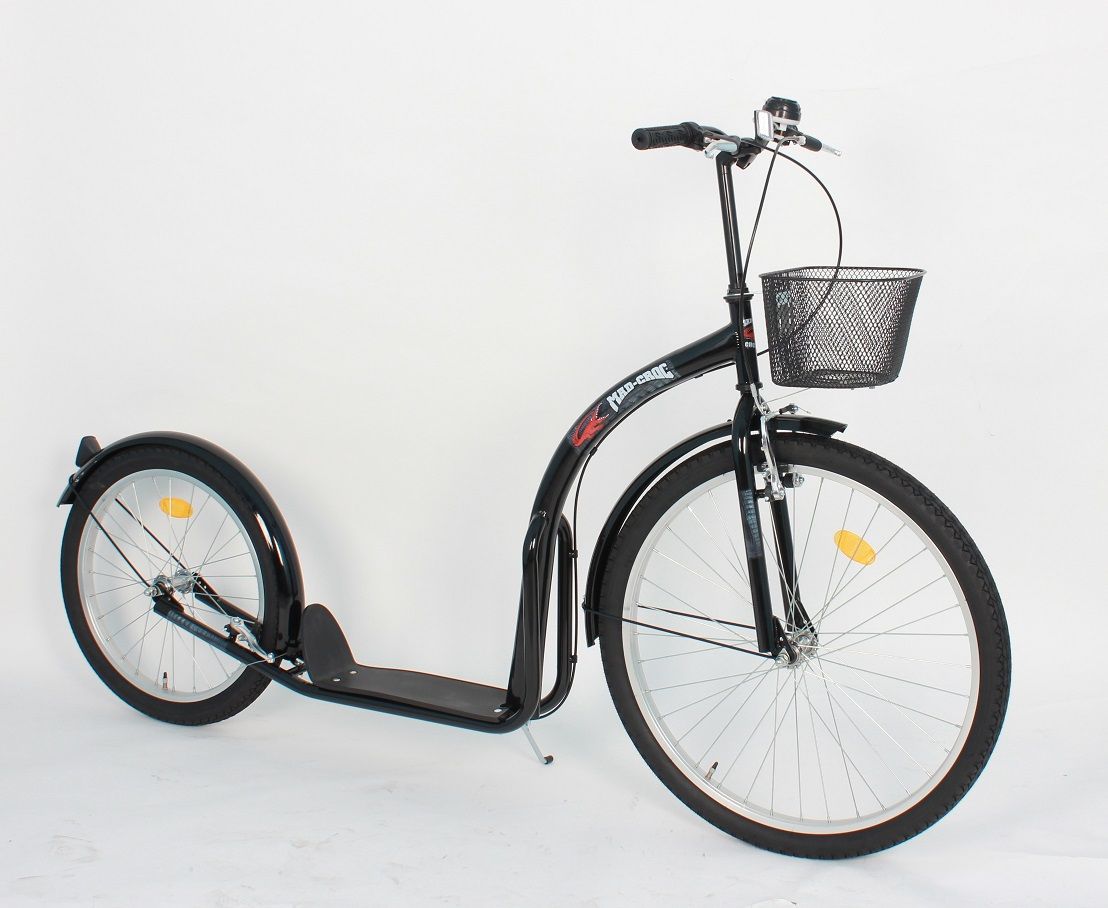

Model No.: PB2620
Description:
SPECIFICATION FOR SCOOTER (PB2620)
1. Frame: Steel frame, H/T: 30*34*200mm, T/T: 42mm*1.4, D/T: 25mm*1.2, TIG welding, end: 3/8"
2. Fork: 26"MTB, steel, 1-1/8" blades, stem: 25.4*22.2*231*95mm
3. Front Brake: V-Brake arm shoes: 60L
4. Rear Brake: V-Brake arm shoes: 60L
5. Brake Lever: 3F lever & clamp, plastic bracket + alloy lever
6. Brake Cable: Only 2P
7. Handlebar: Steel, MTB bend style W/crossbar W: 580mm R: 30mm
8. H/Stem: Steel OD. 22, 2 X 150 mm EXT. 80 mm bar bor ID. 25, 4 mm angle 25
9. Grips: PVC L: 90mm
10. Pad Set: Nil
11. Rims: Alloy front 26"*1.75"*36H, rear 20"*1.75"*28H
12. Front Hub: Steel 3/8"*36H*14G*95W*130mm
13. Rear Hub: Steel 3/8"*28H*14G*95W*130mm
14. Spokes: Steel 14G w/steel nipple
15. Tires: Front 26"-1/2"*2-1/4", rear 20"-1/2"*2-1/4", rubber tires
16. Tube: Front 26"*1.75", rear 20"*1.75", A/V butyl tube W/OB
17. H/Parts: Steel set of 8PCS
18. Footplate: Plastic 320mm*50mm, BK
19. Stand: 16" steel 3.0T H: 115mm
20. Mudguard: F/R steel painted long fender w/stay
21. Bell: Bell, plastic bracket + alloy cover
22. Basket: Steel
23. Carton: 5-PLY for export yellow
24. Assembly: SKD 75% assembly, wheels assembly not installed with frame
