Specifications
Prod Model: |
PB206 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Steel Painted Scooter For Children: |
12 Inch |
Max Capacity: |
50-100kg |
Kind: |
Single |
Height Adjustment: |
Height Adjustment |
Color: |
Yellow |
Wheels: |
2 |
Age: |
Children |
Wheel Material: |
Metal |
Certification: |
CE |
Condition: |
New |
Body Material: |
Steel |
Product Description

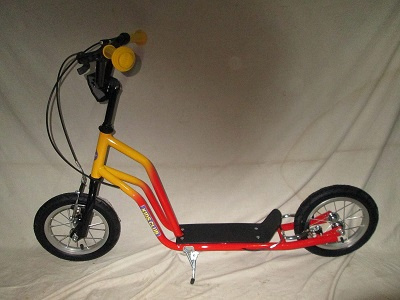

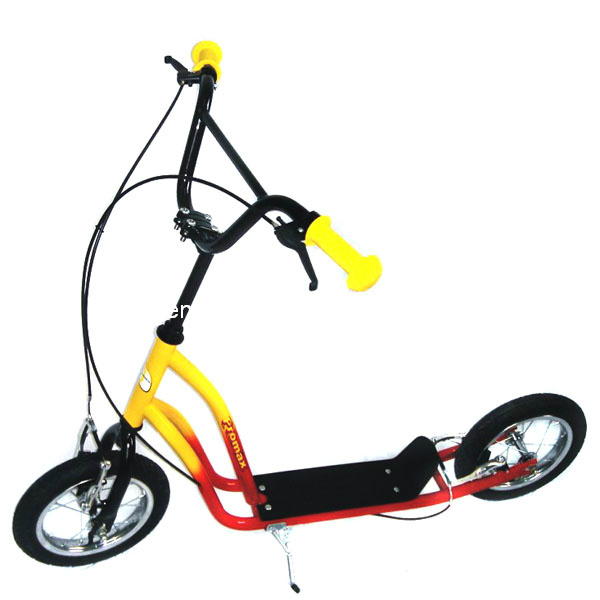

Model No.: PB206
Description:
SPECIFICATION FOR SCOOTER (PB206)1.Frame: steel frame,H/T:30*34*160mm,T/T:25mm,D/T:25mm,TIG welding,end:3/8"
2.Fork: 12"BMX 800#,steel,1-1/8" blades,stem:25.4*22.2*191*85mm
3.Front Brake: V-Brake arm shoes:60L
4.Rear Brake: V-Brake arm shoes:60L
5.Brake Lever: 2.5F lever & clamp,plastic
6.Brake Cable: only 2P
7.Handlebar: steel,BMX U style W/crossbar W:640mm R:180mm
8.H/Stem: four bolts bird handlebar w/stem D:22.2,L:185
9.Grips: PVC mushroom,L:105mm
10.Pad Set: PVC 2PCS for handlebar and stem with customer's design
11.Rims: alloy 12"*1.75"*16H,6N
12.Front Hub: steel 3/8"*16H*14G*85W*120mm
13.Rear Hub: steel 3/8"*16H*14G*85W*120mm
14.Spokes: steel 14G w/steel nipple
15.Tires: 12"-1/2"*2-1/4" rubber tires
16.Tube: 12"*1.75" A/V tube
17.H/Parts: steel set of 8PCS
18.Footplate: plastic 260mm*50mm,BK
19.Stand: 12" steel 3.0T H:115mm
20.Mudguard: nil
21.Bell: nil
22.Carton: 5-PLY for export yellow
