Home Wheelman Co., Ltd. 16" Steel Frame Kick Scooter (PB1612N)

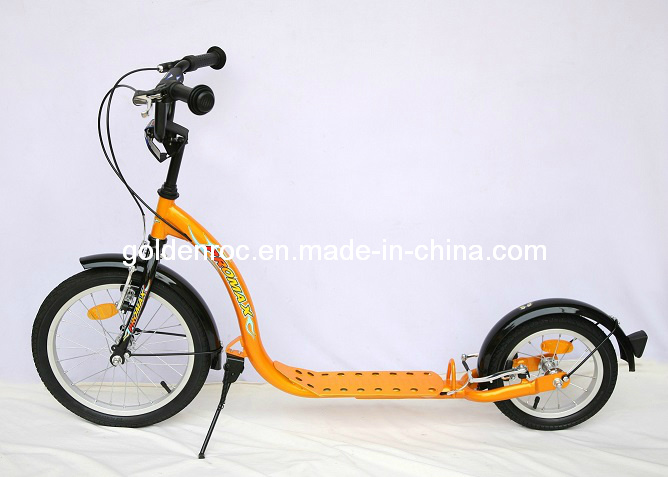

16" Steel Frame Kick Scooter (PB1612N)
| Price: | US $ 33/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 300/Piece |
| Pay Type: | T/T |
Specifications
| Prod Model: | PB1612N |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| 16" Steel Painted Kids Scooter: | 16" Inches |
| Max Capacity: | >100kg |
| Kind: | Single |
| Height Adjustment: | Height Adjustment |
| Color: | Yellow |
| Wheels: | 2 |
| Age: | Children |
| Body Material: | Alu+ Iron |
| Wheel Material: | Metal |
| Certification: | CE |
| Condition: | New |
Product Description
16" Steel Scooter PB1612NModel No.: PB1612N
Description:
SPECIFICATION FOR SCOOTER (PB1612N)
1. Frame: Steel frame, H/T: 30*34*200mm, T/T: 42mm*1.4, D/T: 25mm*1.2, TIG welding, end: 3/8"
2. Fork: 20"MTB, steel, 1-1/8" blades, stem: 25.4*22.2*231*95mm
3. Front Brake: V-Brake arm shoes: 60L
4. Rear Brake: V-Brake arm shoes: 60L
5. Brake Lever: 3F lever & clamp, plastic bracket + alloy lever
6. Brake Cable: Only 2P
7. Handlebar: Steel, BMX U style W/crossbar W: 640mm R: 180mm
8. H/Stem: Four bolts bird handlebar w/stem D: 22.2, L: 220
9. Grips: PVC mushroom, L: 110mm
10. Pad Set: PVC 2PCS for handlebar and stem with customer's design
11. Rims: Alloy front 16"*1.75"*28H, rear 12"*1.75"*16H
12. Front Hub: Steel 3/8"*20H*14G*95W*130mm
13. Rear Hub: Steel 3/8"*16H*14G*95W*130mm
14. Spokes: Steel 14G w/steel nipple
15. Tires: Front 16"-1/2"*2-1/4", rear 12"-1/2"*2-1/4", rubber tires
16. Tube: Front 16"*1.75", rear 12"*1.75", A/V butyl tube W/OB
17. H/Parts: Steel set of 8PCS
18. Footplate: Steel painted 320mm*50mm
19. Stand: 16" steel 3.0T H: 115mm
20. Mudguard: F/R steel painted long fender w/stay
21. Bell: Bell, plastic bracket + alloy cover
22. Carton: 5-PLY for export yellow
23. Assembly: SKD 75% assembly, wheels assembly not installed with frame
| Model No. | Main Description | Carton Size | N. W. /G. W. | QTY. /20' | QTY. /40' HQ | FOB Price |
| PB1612N |
1. Frame: steel painted frame 2. Fork: steel painted fork 3. Handlebar & Stem: steel painted 4. Rim: front 16” and rear 12” , alloy 5. Tyre & Tube: front 16” and rear 12, air tyre 6. Brake: front and rear V-Brake 7. Footplate: steeel painted 8. Accessaries: steel painted mudguard, bell |
110X14.5X44cm | 7.3kgs/8.3kgs | 420PCS | 950PCS | USD33.00 |
