Specifications
Prod Model: |
PB2016N |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
20" Steel Painted Scooter: |
20 Inches |
Max Capacity: |
>100kg |
Kind: |
Double |
Height Adjustment: |
Height Adjustment |
Color: |
White |
Wheels: |
2 |
Age: |
Adult |
Body Material: |
Alu+ Iron |
Wheel Material: |
Metal |
Certification: |
CE |
Product Description

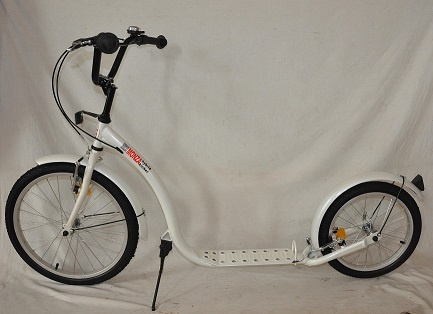

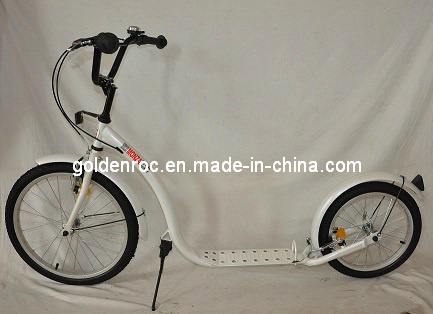

20"/16" steel scooter PB2016N
Model No.: PB2016N
Description:
SPECIFICATION FOR SCOOTER (PB2016N)
1. Frame: Steel frame, H/T: 30*34*200mm, T/T: 42mm*1.4, D/T: 25mm*1.2, TIG welding, end: 3/8"
2. Fork: 20"MTB, steel, 1-1/8" blades, stem: 25.4*22.2*231*95mm
3. Front Brake: V-Brake arm shoes: 60L
4. Rear Brake: V-Brake arm shoes: 60L
5. Brake Lever: 3F lever & clamp, plastic bracket + alloy lever
6. Brake Cable: Only 2P
7. Handlebar: Steel, BMX U style W/crossbar W: 640mm R: 180mm
8. H/Stem: Four bolts bird handlebar w/stem D: 22.2, L: 220
9. Grips: PVC mushroom, L: 110mm
10. Pad Set: PVC 2PCS for handlebar and stem with customer's design
11. Rims: Alloy front 20"*1.75"*28H, rear 16"*1.75"*20H
12. Front Hub: Steel 3/8"*28H*14G*95W*130mm with quick release
13. Rear Hub: Steel 3/8"*20H*14G*95W*130mm with quick release
14. Spokes: Steel 14G w/steel nipple
15. Tires: Front 20"-1/2"*2-1/4", rear 16"-1/2"*2-1/4", rubber tires
16. Tube: Front 20"*1.75", rear 16"*1.75", A/V butyl tube W/OB
17. H/Parts: Steel set of 8PCS
18. Footplate: Steel painted 320mm*50mm
19. Stand: 16" steel 3.0T H: 115mm
20. Mudguard: F/R steel painted long fender w/stay
21. Bell: Bell, plastic bracket + alloy cover
22. Carton: 5-PLY for export yellow
23. Assembly: SKD 75% assembly, wheels assembly not installed with frame
Model No. |
Main Description |
Carton Size |
N. W. /G. W. |
QTY. /20' |
QTY. /40' HQ |
FOB Price |
PB2016N |
1. Frame: steel painted frame
2. Fork: steel painted fork
3. Handlebar & Stem: steel painted
4. Rim: alloy front 20” and rear 16”
5. Tyre & Tube: front 20" and rear 16” air tyre
6. Brake: front and rear V-Brake
7. Footplate: steeel painted
8. Accessaries: steel painted mudguard, bell |
107X15.5X55cm |
10kgs/11kgs |
320PCS |
748PCS |
USD37.00 |
