Specifications
Prod Model: | TY-6150 |
---|---|
CARB: | CE |
Start-up: | Electric |
Transmission: | Chain |
Displacement: | 150CC |
Certification: | EPA |
Product Description

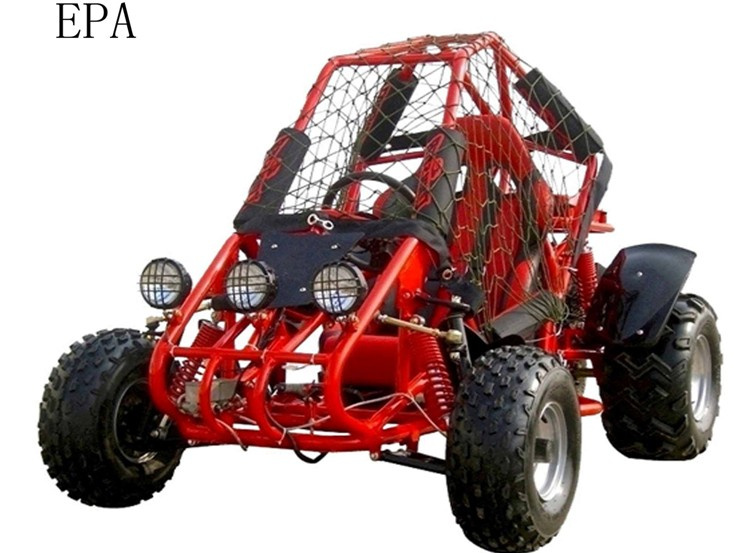

GO CART TY-6150Quantity | price | notice |
Engine availiable:150cc Certificate:CARB EPA CE | ||
30pcs/40HQ container |
S P E C I F I C A T I O N S | |
Engine: | 150CC CY-6 4-stroke |
Max. speed: | 60km/h |
Ignition: | CDI |
Start method: | electric start |
Transmission: | Chain drive |
Tire: | a) Front: 19*7.00-8 b) Rear:22*11-10 |
Brake: | a) Front: disc brake(foot) b) Rear: disc brake(foot) |
Bore x stroke: | 57.4x 57.8mm |
Max. power: | 6.0kW / 7,500r/min |
Max. Torque: | 8.0N.m / 6,500r/min |
Compression ratio: | 9.2:1 |
Wheelbase | 1,525mm |
Ground clearance | 178mm |
Max load | 70kg |
Full tank | 10L |
Packing size: | 2204x1283x1677mm |
Product Feature |
engine :150 cc , 4- stroke , water-cooled,cy-6 |
The wheel hub: iron. |
The front tire :8 inches, the rear :10 inches ; starting method:electric start. Transmission: chain. |
the front/ rear wheel: disc brake |
the front suspension :350mm,the rear suspension : 350 mm . |
