Specifications
| Markets: | Eastern Europe,Western Europe |
|---|---|
| Maximum Loading Capacity: | 75-120kg |
| Engine: | 4 Stroke |
| Certification: | EEC |
Product Description

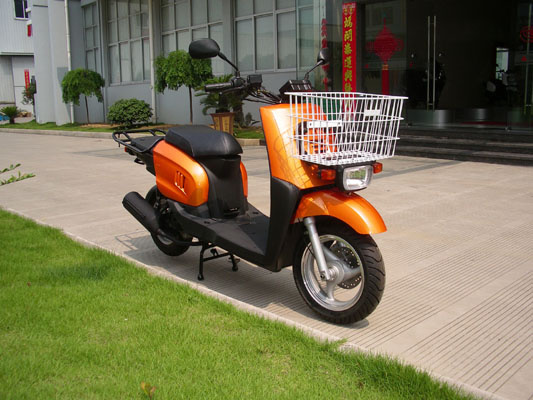

EEC SCOOTER (TY-H2)| Model Name | H-2 (50cc) | H-2 (125cc) | H-2(150cc) |
| Engine Size(cc) | 1P38QMB | 152QMI | 157QMJ |
| Engine Type | single cylinder,4stroke,air cooled | single cylinder,4stroke,air cooled | single cylinder,4stroke,water-cooled |
| New Weight(kg) | 115 | 115 | 115 |
| Dimensions(mm) | 1882×683×1011mm | 1882×683×1011mm | 1882×683×1011mm |
| Wheelbase | 1352mm | 1352mm | 1352mm |
| Tire Size (inch) | F:110/70-12R:3.5-10 | F:110/70-12R:3.5-10 | F:110/70-12R:3.5-10 |
| Fuel Capacity(L) | 7 | 7 | 7 |
| Max loading weight(kg) | 150 | 150 | 150 |
| Max power(kw/r/min) | 2.8 kw/7500r/min | 5.6 kw/7500r/min | 7.0kw/7500r/min |
| Max torque(n.m/r/min) | 7.6 N.m/5000 r/min | 7.6 N.m/6000 r/min | 9.0N.m/5500r/min |
| Brake Mode(F/R) | F:Disk R: Drum | F:Disk;R: Drum | F:Disk;R: Drum |
| Starting System | Electric / Kick | Electric / Kick | Electric / Kick |
| Payment | 20% T/T advanced, 70% balance L/C irrevocable 60 days | ||
| Port | NingBo,China (by sea) | ||
| Delivery Lead Time: | 25 days after receiving the advance | ||
| MOQ 40HQ) | 50 | 50 | 50 |
| Package Size | 1880*560*1120 | 1880*560*1120 | 1880*560*1120 |
