Specifications
Prod Model: | TY-6250 |
---|---|
CARB: | CE |
Start-up: | Electric |
Transmission: | Chain |
Displacement: | 250CC |
Certification: | EPA |
Product Description

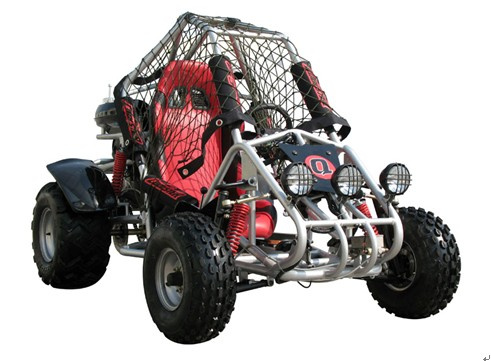

GO CART TY-6250Quantity | price | notice |
Engine availiable:250cc Certificate:CARB EPA ,CE | ||
10pcs/20FT container | ||
30pcs/40HQ container |
S P E C I F I C A T I O N S | |
Engine: | 250CC CY-6 |
Max. speed: | 70km/h |
Ignition: | CDI |
Start method: | electric start |
Transmission: | Chain drive |
Tire: | a) Front: 19*7.00-8 b) Rear:22*11-10 |
Brake: | a) Front: disc brake(foot) b) Rear: disc brake(foot) |
Bore x stroke: | 72 x 60mm |
Max. power: | 11kW / 7,000r/min |
Max. Torque: | 17.6N.m / 5,500r/min |
Compression ratio: | 10:1 |
Wheelbase | 1,480mm |
Ground clearance | 168mm |
Max load | 150kg |
Full tank | 10L |
Packing size: | 2290x1190x830mm |
Product Feature |
Engine: 250 cc , 4- stroke , water-cooled,cy-6 |
The wheel hub : iron. |
The front tire :8 inches , the rear ,10 inches ;starting method :electric start. Transmission: chain. |
the front/ rear wheel :disc brake |
the front suspension : 350 mm ,the rear suspension : 350 mm . |
