Specifications
Prod Model: | TY-6110A |
---|---|
CARB: | CE |
Start-up: | Electric |
Transmission: | Chain |
Certification: | EPA |
Product Description

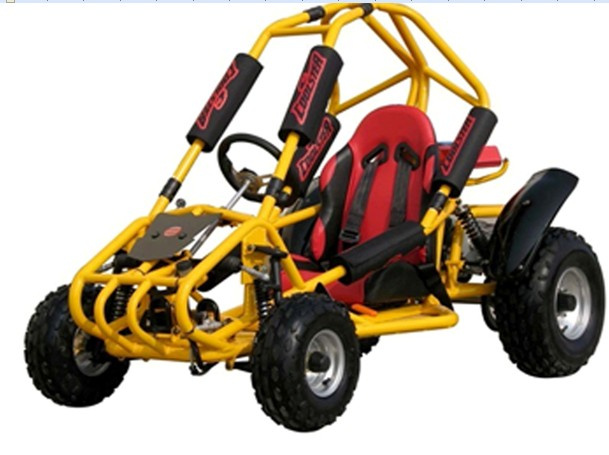

GO CART TY-6110AQuantity | price | notice |
Engine availiable:110cc Certificate:CARB EPA CE | ||
18pcs/20FT container | ||
52pcs/40HQ container |
S P E C I F I C A T I O N S | |
Engine: | 110CC CY-6 4-stroke fully-automatic |
Max. speed: | 58km/h |
Ignition: | CDI |
Start method: | electric start |
Transmission: | Chain drive |
Tire: | a) Front: 14.5*7.00-6 b) Rear:19*7.00-8 |
Brake: | a) Front: disc brake(foot) b) Rear: disc brake(foot) |
Bore x stroke: | 57.4x 57.8mm |
Max. power: | 3.2kW / 7,500r/min |
Max. Torque: | 3N.m / 7,500r/min |
Compression ratio: | 9.8:1 |
Wheelbase | 1,190mm |
Ground clearance | 130mm |
Max load | 50kg |
Full tank | 7.4L |
Packing size: | 1790x950x600mm |
Product Feature |
Engine:110 cc , 4- stroke , air-cooled,cy-6,fully-auto |
The wheel hub: iron. |
The front tire :6 inches, the rear :8 inches ; starting method:electric start. Transmission:chain. |
the front / rear wheel brake:disc brake |
the front suspension :255mm,the rear suspension :260mm. |
