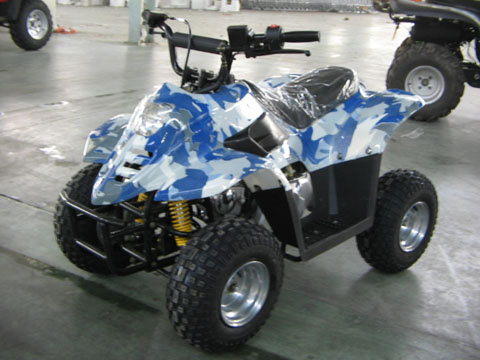

EPA Approved ATV (YA50-1)

Specifications

Product Description

1) Engine: 4 stroke, 50CC, air cooled.
2) Transmission: Fully automatic, chain driven.
3) Efficient capacity: 49ml.
4) Borex stroke: 38x43mm
5) Brake: Rear disc
6) Start method: Electric
7) Compression ratio: 7: 1
8) Max speed: 35km/h
9) Rated power: 2. 3kW/8500r/min
10) Max torque: 2. 7N. M/6500r/min
11) Ground clearance: 110mm
12) Tire: F/R: 145/70-6
13) Oil tank volume: 3. 4L
14) Product dimension(LxWxH): 1200x700x830mm

Packing:
G. W/N. W: 97/81kg
Carton dimensions: 1150 x 690 x 590mm

Conveyance:
63PCS/20ft 136PCS/40'HQ
