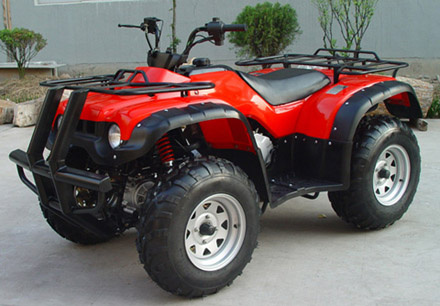

4WD EPA&EEC Approved 400CC ATV

Specifications

Product Description

Specification: 400CC Yamaha engine, 4 wheel driven.

Engine Type: Single cylinder, air-cooled, 4-stroke
Displacement: 400cc
Ignition mode: CDI
Start mode: Electric
Fuel tank capacity: 10L
Transmission mode: Chain
Max. Speed: ≥85km/h
Transmission: 6 gears with reverse gear, manual clutch
Cylinder size: 78 x 61. 2mm
Break type (F/R): Disc / disc
Front hanging: Double arm-swing
Dimensions
Product dimensions: 1, 840 x 1, 200 x 1, 175mm
Carton dimensions: 1, 950 x 1, 120 x 880mm
Wheelbase: 1, 230mm
Dry weight: 190kg
Load capacity: 150kg
Climbing degree: ≥20
Min. Turning radius: 3, 000mm
Conveyance: Qty/20'GP: 10 units Qty/40'GP: 24 units Qty/40'HQ: 36 units
Color: Red/yellow/blue/green/camouflage
