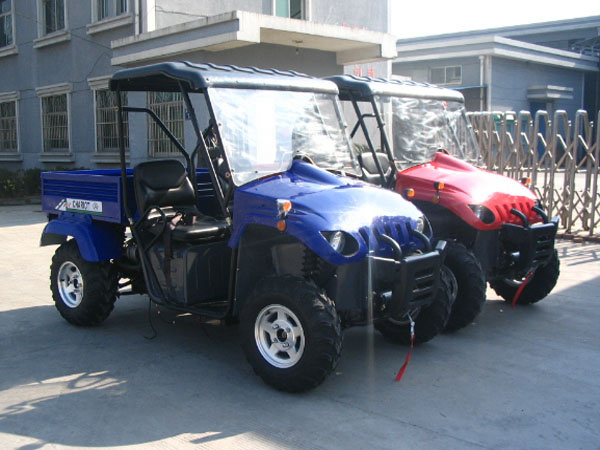

Utility Truck 650cc

Specifications

Prod Model:	UT650

Product Description

Specifications:Water cooled 650CC engine; with winch.

1) Engine type: Twin-cylinder, Water-cooled, 4-stroke
2) Bore X stroke: 76 X 71mm
3) Displacement: 644ml
4) Compression ratio: 8.4:1
5) Max. power / rotational speed: 20.6kW / 4,500rpm
6) Rating power / rotational speed: 17kW / 4,500rpm
7) Max. torque / rotational speed: 44N.m / 2,700-3,300g/rpm
8) Economical oil exhaust :6.0L/100KM
9) Type of oil: SE15W/40, SE10W/30
10) Capacity of oil: 2.9L
11) Ignition mode: battery ignition
12) Battery: 12V 36Ah
13) Wheelbase: 2000mm
14) Front track: 1150mm
15) Rear track: 1150mm
16) Ground clearance: 300mm
17) Gear: Four forwarder gears with reverse
18) Starting: Electric starting
19) Tire(front/rear): 25*8-12/25*10-12
20) Max.speed(km/h): 80
21) Brake(front/rear): Disc/Disc
22) Dimension: 3,000 X 1,500 X 1,900mm
23) Packing size: 2,550 X 1,330 X 1,150mm
24) Qty/20FT : 4 units
25) Qty/40HQ : 16 units
