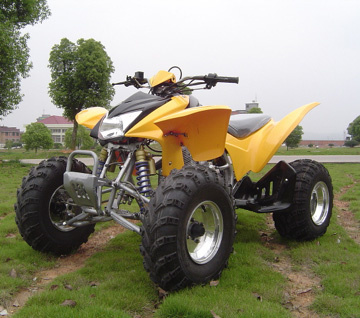

EPA Approved ATV(YA250-A5)

Specifications

Product Description

Engine type: Single Cylinder, 4 stroke, Water-cooled.
Max Power (km/r/min) 11. 6/6500
MAX TORQUE (N. M/(r/min) 18/5500
Bore stroke 67x65
ENGINE DISPLACEMENT (ml) 230
Compression Ratio 9. 0: 1
BORE X STROKE (mm) 67x65
Engine oil capacity (L) 1
Lubrication Press and splash
Ignition type CDI
Shift speed type Four forward, one reverse and one interior
Clutch mode Manual
Reverse type Interior
Start mode Electrical
Cool mode Air-cooled
External condition:
Brake mode (front/rear) Disc/disc
Front suspension Dual A-arms and independent suspension
Transmission mode Chain, two wheel-driven
Front tyre dimension AT23x7-10
Rear tyre dimension AT22x10-10
Seat Height (mm) 830
Minimum Turning Radius (mm) 2700
Minimum ground clearance (mm) 175
Fuel Capacity (L) 9. 8
Parking brake Mechanical lock
Battery 12V 14Ah
Max load capacity (kg) 150
Rider capacity 1 person
Fuel consumption (L/100km) 5
Axle distance (mm) 1260
Front wheel distance (mm) 870
Rear wheel distance (mm) 930
Max speed (km/h) 90
Max climbing degree ( 0) 60
Cover material PP
LengthxWidthxHeight (mm) 1880x1140x1120
Color Red, yellow, green, black, two color mixed
G. W. (kg) 218
N. W. (kg) 180

Packing
Packing style Iron and carton box
Disassemble parts Rear armrest and tyre
Qty/20' GP 12PCS
Qty/40' GP 28PCS
Qty/40' HQ 42PCS
