Home Qufu Leadway Trading Co., Ltd. EEC CVT 300cc 4X4 ATV

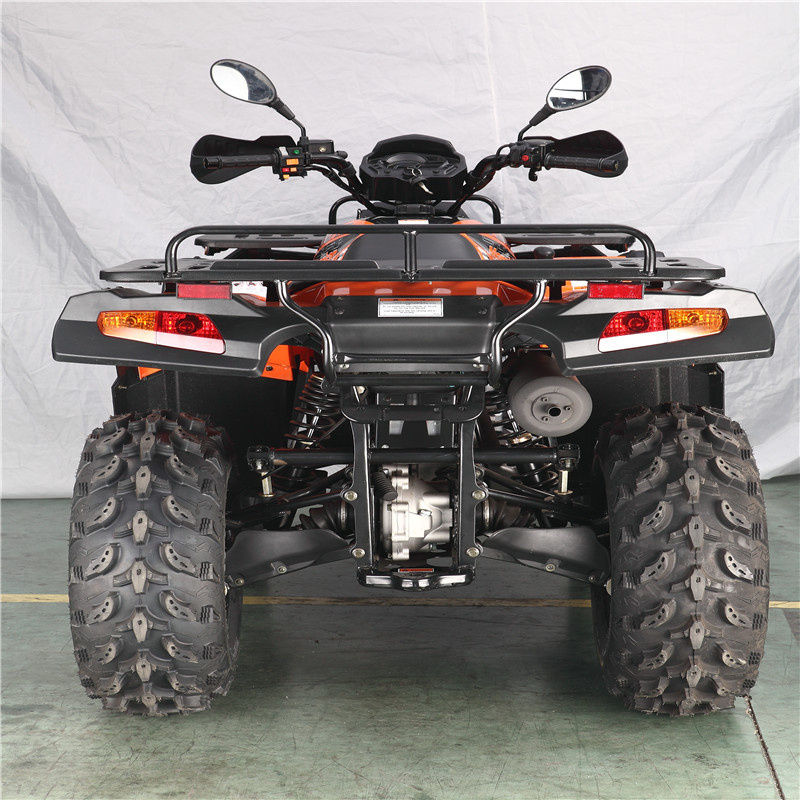

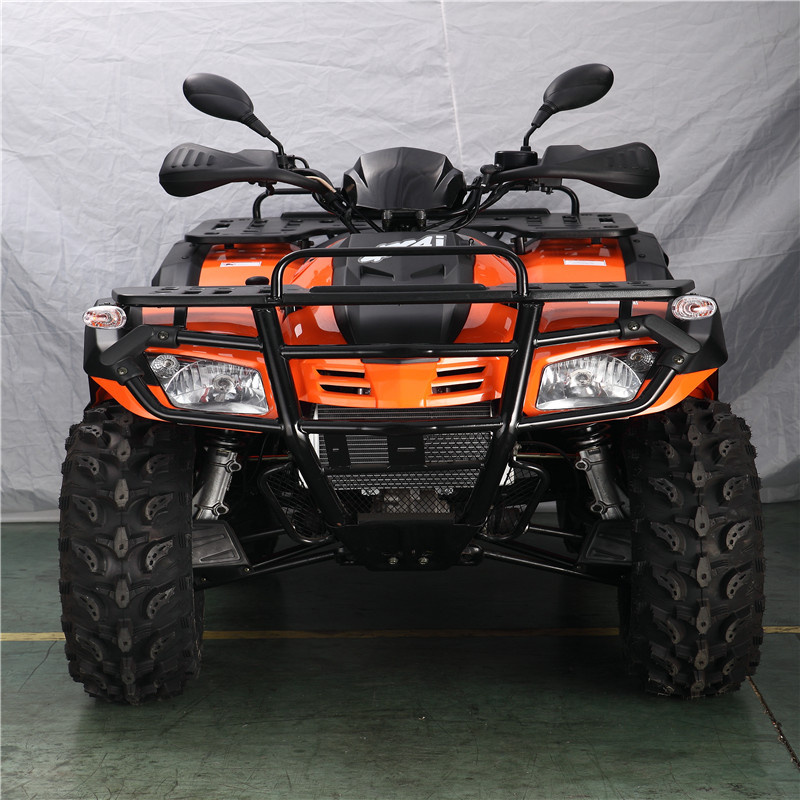

EEC CVT 300cc 4X4 ATV
| Price: | US $ 2500-2650/Piece |
|---|---|
| Trade Terms: | FOB,CIF |
| Min Order: | 100/Piece |
| Pay Type: | L/C,T/T,Paypal,Money Gram,Western Union |
| Prod Model: | 300cc 4x4 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Transmission: | CVT ( L/N/R ) |
| Rear Suspnesion: | Independent Suspension |
| Gearshift: | Shaft |
| Switch: | 2WD /4WD Switch Button |
| Rim: | Alloy or Steel |
| Color: | Red , Orange, Black, Camo, |
| Name: | 300cc 4X4 CVT Efi ATV with EEC Approval |
| Transmission Type: | Automatic |
| Engine Type: | 4 Stroke |
| Structure: | Without Door |
| Displacement: | 300CC |
| Transmission System: | Shaft Drive |
| Fuel: | Gas / Diesel |
| Brake Type: | Disc Brake |
| Certification: | EPA |
| Condition: | New |
| Maximum Speed: | 65km/H |
Product Description
300cc 4x4 CVT EFI ATV with EEC approval 2016. Max speed 65km/h, with CVT transmission.It can use for farmer, utility and play.ATV can pull the atv trailer for work. same like car. fast speed and work at your spare time.
| ENGINE TYPE | Single Cylinder, 4 Stroke, Water Cooled |
| MAX.POWER(KW/rpm) | 14KW/7000rpm |
| MAX.TORQUE(N.m/rpm) | 20N.m/5500rpm |
| MAX.SPEED | 65Km/h |
| BORE STROKE | 72.5mm × 66.8mm |
| DISPLACEMENT | 276cm |
| COMPRESSION RATIO | 10.3:1 |
| CARBURETOR | CVK052 |
| LUBRICATION | Combined Force-Feed and Splash Lubrication |
| AIR FILTER TYPE | Dry Air Filter Net |
| SPARK PLUG | DR8EA |
| STARTING | Electric Start |
| IGNITION | C.D.I |
| STARTING PROCEDURE | Start Electric Lock, Hold Brake, Press Start Switch |
| GEARSHIFT | Manual |
| SHIFT SWITCH | 2W/4W Shift Button (Yellow) |
| TRANSMISSION | Automatic CVT with H/L/N/R |
| FINAL DRIVE SYSTEM | 4WD / Shaft |
| BRAKE FRONT | Hydraulic Disc Brake |
| BRAKE REAR | Hydraulic Disc Brake |
| PARKING DEVICE | Mechanical Brake Lock on Rear Disc |
| BRAKE DISTANCE | 7m/30km/h |
| FRONT SUSPENSION | Mcpherson Suspension |
| REAR SUSPENSION | Independent Rear Suspension |
| SHOCK ABSORBER(F) | Double |
| SHOCK ABSORBER(R) | Double |
| BATTERY | 12V/14AH |
| ENGINE OIL | 1.5L |
| TRANSMISSION OIL | 0.8L |
| REAR OIL | 0.3L |
| FUEL | 90# Unleaded Gasoline |
| FUEL CAPACITY | 12.5L |
| TURNING RADIUS | 3280mm |
| MAX.LOAD(kgs) | 156kg |
| FRONT TIRE | 25x8-12 |
| REAR TIRE | 25x10-12 |
| RIM MATERIAL | Aluminium Alloy |
| OVERALL | 2016×1180×1237mm |
| PACKING SIZE | 2280×1290×870mm |
| WHEELBASE(mm) | 1271mm |
| SEAT HEIGHT(mm) | 895mm |
| GROUND CLEARANCE | 183mm |
| NET WEIGHT(kgs) | 280kgs |
| COLOR | Red, Blue, Orange, Black, Army Green, Camo |
| LOADING QUANTITY | 8pcs/20'GP, 18pcs/40'GP, 27pcs/40'HQ |
