Home Qufu Leadway Trading Co., Ltd. 400cc 4X4 Quad
400cc 4X4 Quad
| Price: | US $ 2700-2850/Piece |
|---|---|
| Trade Terms: | FOB,CIF |
| Min Order: | 100/Piece |
| Pay Type: | L/C,T/T,Paypal,Money Gram,Western Union |
| Prod Model: | 400cc |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Transmission: | CVT ( L/N/R ) |
| Rear Suspnesion: | Independent Suspension |
| Gearshift: | Shaft |
| Switch: | 2WD /4WD Switch Button |
| Rim: | Alloy or Steel |
| Color: | Red , Orange, Black, Camo, |
| Name: | 550cc 4X4 CVT Efi ATV with EEC Approval |
| Transmission Type: | Automatic |
| Engine Type: | 4 Stroke |
| Structure: | Without Door |
| Transmission System: | Shaft Drive |
| Fuel: | Gas / Diesel |
| Brake Type: | Disc Brake |
| Certification: | EPA |
| Condition: | New |
| Displacement: | 400cc |
| Maximum Speed: | 85km/H |
Product Description

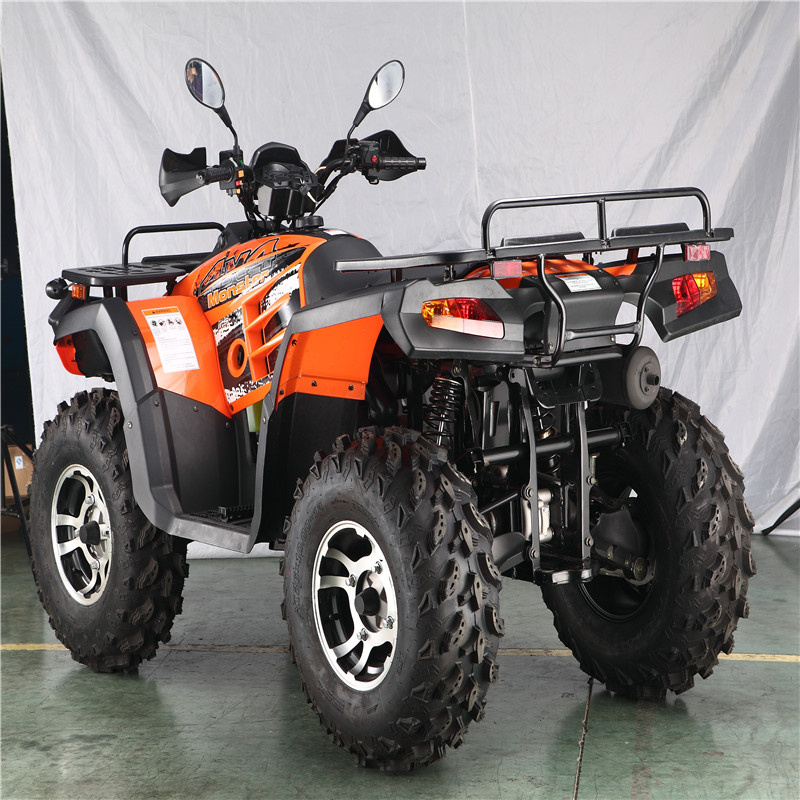

400cc 4x4 CVT EFI ATV with EEC approval 2016. Max speed 90km/h, with CVT transmission.It can use for farmer, utility and play.ATV can pull the atv trailer for work. same like car. fast speed and work at your spare time.
| ENGINE TYPE | Single Cylinder, 4 Stroke, Water Cooled |
| MAX.POWER(KW/rpm) | 18KW/7500rpm |
| MAX.TORQUE(N.m/rpm) | 32N.m/5500rpm |
| MAX.SPEED | 85Km/h |
| BORE STROKE | 80mm × 69.8mm |
| DISPLACEMENT | 386cm |
| COMPRESSION RATIO | 10.3:1 |
| LUBRICATION | Combined Force-Feed and Splash Lubrication |
| AIR FILTER TYPE | Dry Air Filter Net |
| SPARK PLUG | DR8EA |
| STARTING | Electric Start |
| IGNITION | T.C.I |
| STARTING PROCEDURE | Start Electric Lock, Hold Brake, Press Start Switch |
| GEARSHIFT | Manual |
| SHIFT SWITCH | 2W/4W Shift Button (Yellow) |
| TRANSMISSION | Automatic CVT with H/L/N/R |
| FINAL DRIVE SYSTEM | 4WD / Shaft Drive |
| BRAKE FRONT | Hydraulic Disc Brake |
| BRAKE REAR | Hydraulic Disc Brake |
| PARKING DEVICE | Mechanical Brake Lock on Rear Disc |
| BRAKE DISTANCE | 7m/30km/h |
| FRONT SUSPENSION | Mcpherson Suspension |
| REAR SUSPENSION | Independent Rear Suspension |
| SHOCK ABSORBER(F) | Double |
| SHOCK ABSORBER(R) | Double |
| BATTERY | 12V/14AH |
| ENGINE OIL | 1.8L |
| TRANSMISSION OIL | 0.8L |
| REAR OIL | 0.3L |
| FUEL | 93# Unleaded Gasoline |
| FUEL CAPACITY | 12.5L |
| TURNING RADIUS | 3280±300mm |
| MAX.LOAD(kgs) | 180kg |
| FRONT TIRE | 26x9-12 (Qianda) |
| REAR TIRE | 26x11-12 (Qianda) |
| RIM MATERIAL | Aluminium Alloy |
| OVERALL | 2016×1180×1237mm |
| PACKING SIZE | 2280×1290×870mm |
| WHEELBASE(mm) | 1271mm |
| SEAT HEIGHT(mm) | 895mm |
| GROUND CLEARANCE | 183mm |
| NET WEIGHT(kgs) | 290kgs |
| COLOR | Red, Blue, Orange, Black, Army Green, Camo |
| LOADING QUANTITY | 8pcs/20'GP, 18pcs/40'GP, 27pcs/40'HQ |
We started is a completely integrated manufacturer and exporter, engaged in two product entities: ATV & Electric Vehilce. Our experienced technicians and engineers to form the strong professional team to design, Innovation and produce two different product entities. Therefor we have the reliable quality based on advanced production, upgraded technology and diagnostic equipment. We firmly believe that "Focus is the most competitive! ". Our career development goals is " better machine, better life! "
Electric Vehicle: Electric car, electric tricycle, electric scooter, electric bike ect.
Gasoline vehicle Such as: ATV, ATV mower, gasoline scooter gas tricycle ect.
The products have been exported ASEAN, Europe, North and South America countries, Our company enjoy good reputation. We are willing to enter into business relations with your firm on the basis of equality, mutual benefit and exchanging what one has for what one needs.
For Quality:
Probably mostly clients biggest concern is the quality assurance we have in place.
1. We supply machines warranty period from 1 year to 2 years.
2.1% --2% easily wore spare parts free based on full container orders. If the product has the quality of bulk. Except we timely solve the problems. We would send the right replacement parts you need free of charge during 7 days by air after both sides confirmed that no objection.
3. The production processes are conducted under rigid quality control measures, which have thereby earned us ISO9001: 2000 certificate. In addition to European GS, TUV, RoHS, CE and EPA, EMC certification for all series.
For Service:
We treat our customers as one group family and friends. Long standing business relationship is our goal. We will make you pleased when you work with us!
Electric Vehicle: Electric car, electric tricycle, electric scooter, electric bike ect.
Gasoline vehicle Such as: ATV, ATV mower, gasoline scooter gas tricycle ect.
The products have been exported ASEAN, Europe, North and South America countries, Our company enjoy good reputation. We are willing to enter into business relations with your firm on the basis of equality, mutual benefit and exchanging what one has for what one needs.
For Quality:
Probably mostly clients biggest concern is the quality assurance we have in place.
1. We supply machines warranty period from 1 year to 2 years.
2.1% --2% easily wore spare parts free based on full container orders. If the product has the quality of bulk. Except we timely solve the problems. We would send the right replacement parts you need free of charge during 7 days by air after both sides confirmed that no objection.
3. The production processes are conducted under rigid quality control measures, which have thereby earned us ISO9001: 2000 certificate. In addition to European GS, TUV, RoHS, CE and EPA, EMC certification for all series.
For Service:
We treat our customers as one group family and friends. Long standing business relationship is our goal. We will make you pleased when you work with us!
