North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Transmission:
CVT ( L/N/R )
Rear Suspnesion:
Independent Suspension
Gearshift:
Shaft
Switch:
2WD /4WD Switch Button
Rim:
Alloy or Steel
Color:
Red , Orange, Black, Camo,
Name:
550cc 4X4 CVT Efi ATV with EEC Approval
Transmission Type:
Automatic
Engine Type:
4 Stroke
Structure:
Without Door
Transmission System:
Shaft Drive
Brake Type:
Disc Brake
Certification:
EPA
Condition:
New
Displacement:
550cc
Fuel:
Gasoline
Maximum Speed:
90km/H
Product Description

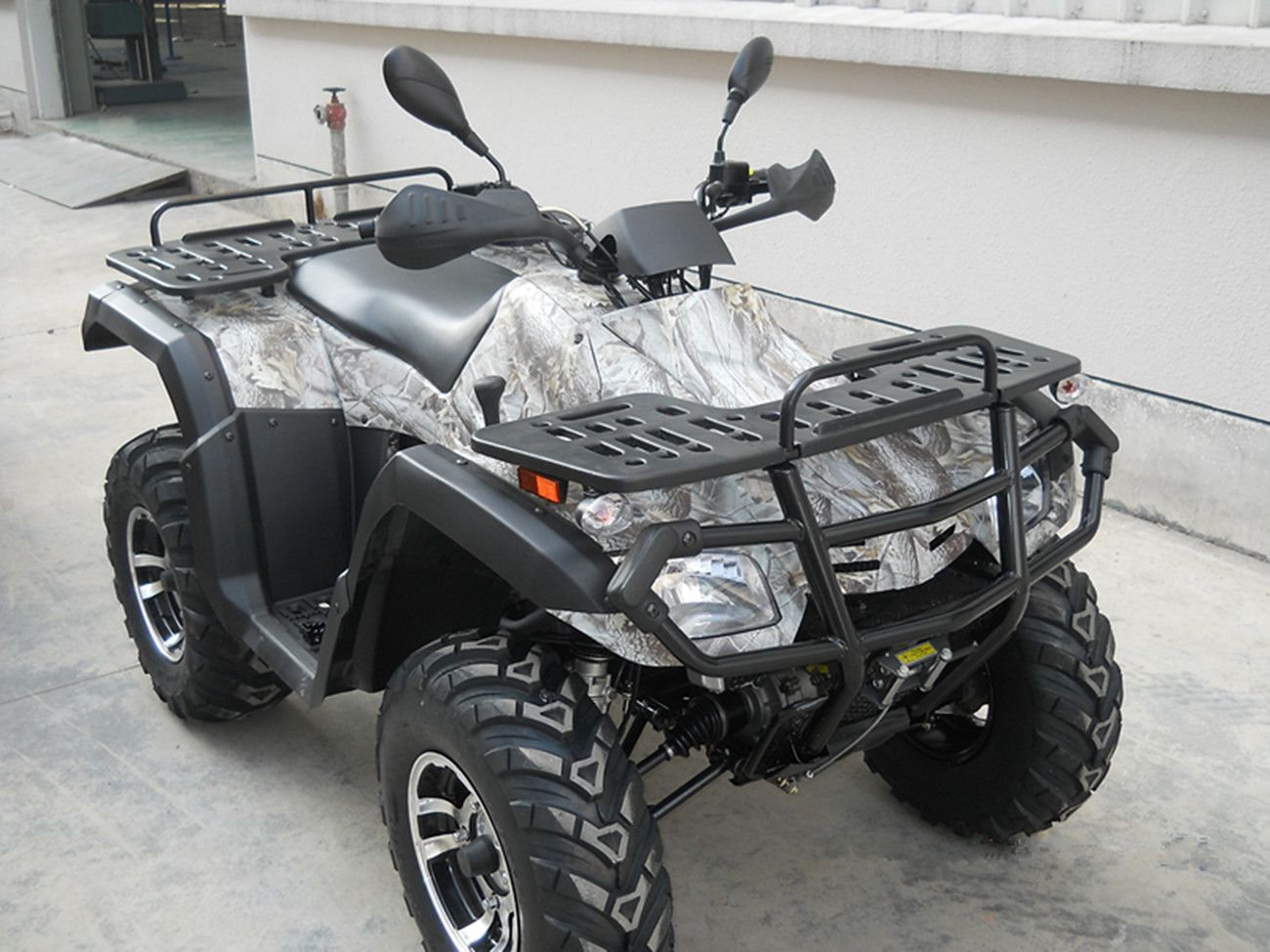

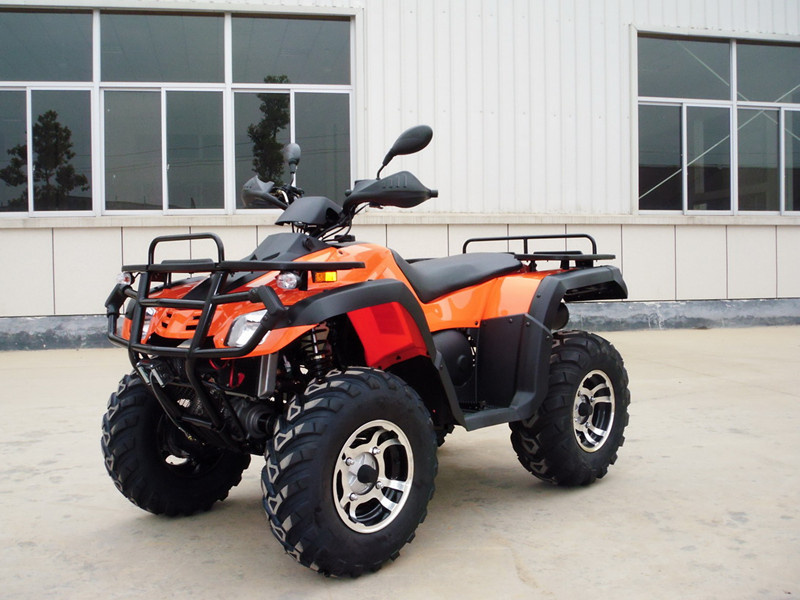

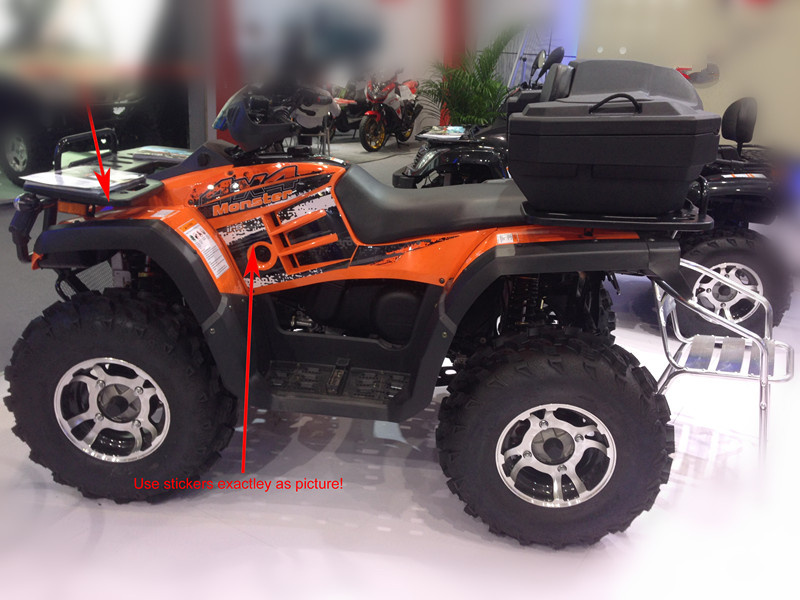

550cc 4x4 CVT EFI ATV with EEC approval 2016. Max speed 90km/h, with CVT transmission. It can use for farmer, utility and play.ATV can pull the atv trailer for work. same like car. fast speed and work at your spare time.
ENGINE TYPE
4Stroke,V-Twin Cylinder, SOHC,EFI
ENGINE COOLING
Liquid-Cooled
MAX.POWER(KW/rpm)
26.5KW/7000rpm
STANDARD POWER
25KW/6500rpm
MAX.TORQUE(NM/rpm)
45N.m/5500rpm
MAX.SPEED
≥90Km/h
BORE STROKE
72.5mm x 66.8mm
DISPLACEMENT
552ml
COMPRESSION RATIO
10.3:1
FUEL SUPPLY SYSTEM
ECU
LUBRICATION
Separated&pressure
AIR FILTER TYPE
Dry Air-Cleaner Net
SPARK PLUG
DR8EA
STARTING
Electric Start & Pull start
STARTING PROCEDURE
Turn lgnition
GEARSHIFT
Manual
TRANSMISSION
CVT(H/L/N/R)
BRAKE FRONT
Disc Brake
BRAKE DISTANCE
7m/30km/h
FRONT SUSPENSION
Macphersan Independent
REAR SUSPENSION
Double Wishbone
SHOCK ABSORBER(F/R)
Spring and Damp Shock Absorbor
BATTERY
12V/18AH
ENGINE OIL
1.5L
TRANSMISSION OIL
0.8L
REAR OIL
0.3L
FUEL
93# Unleaded Gasoline
FUEL CAPACITY
12L
TURNING RADIUS
3280mm
MAX.LOAD(kgs/lbs)
204kg
FRONT TIRE
25x8-12
REAR TIRE
25x10-12
OVERALL
2016x1180x1237mm
REMARK
Utility model, with 552ml water cool engine, EFI, 4WD, 2WD /4WD Switch button. rear independent suspension, with winch, alloy rim, tow-bar nut etc.
