Home Qufu Leadway Trading Co., Ltd. 70cc 110cc ATV with High Quality

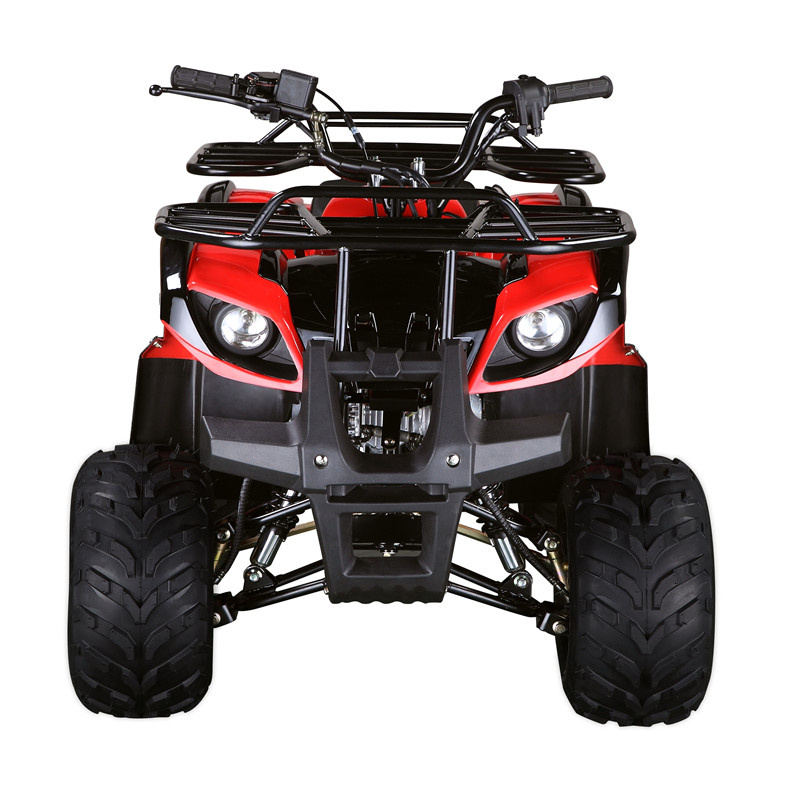

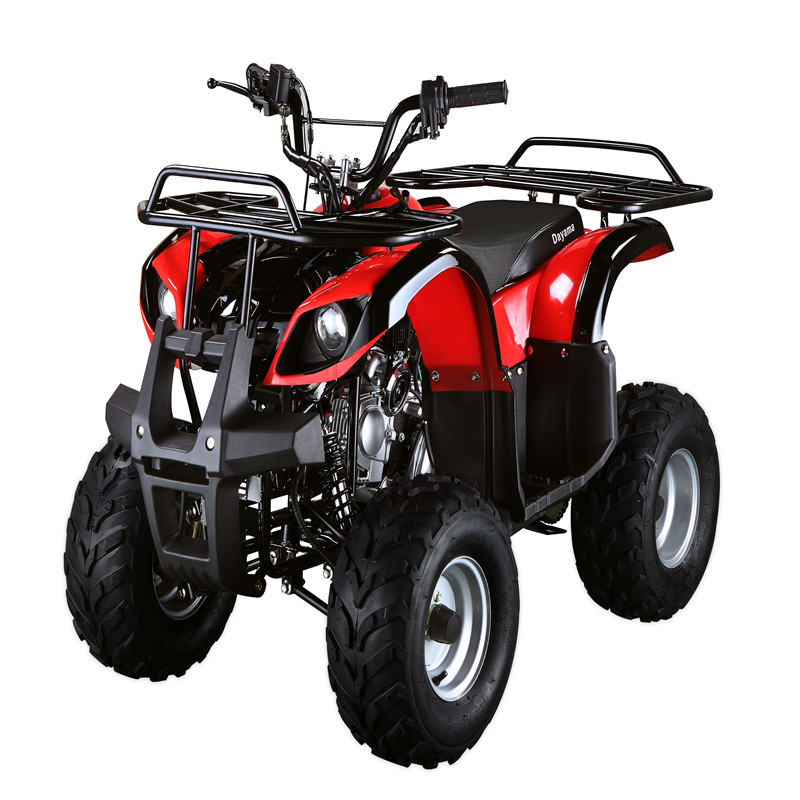

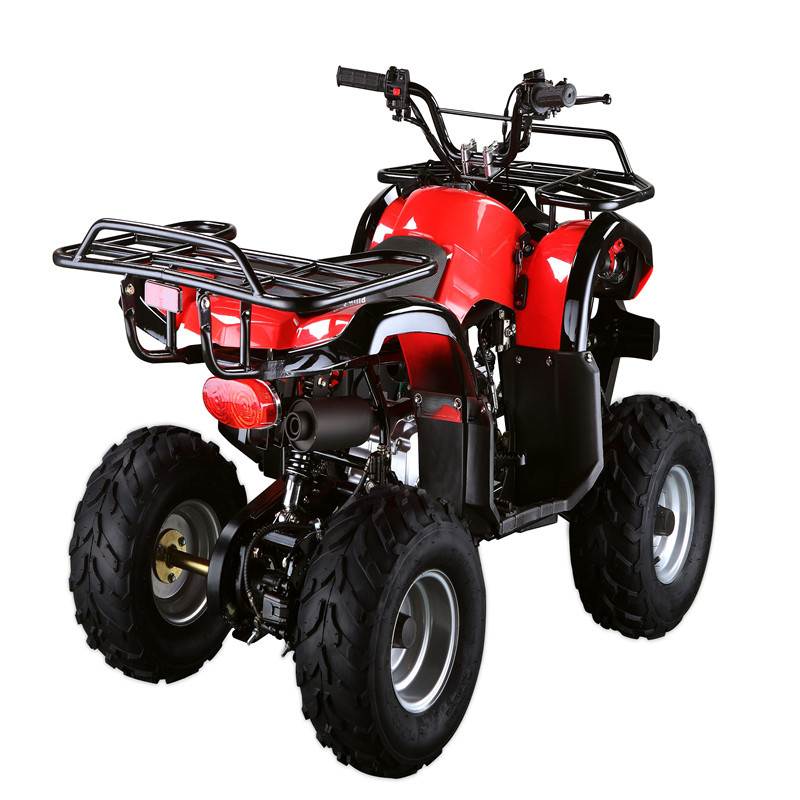

70cc 110cc ATV with High Quality
| Price: | US $ 380-400/Piece |
|---|---|
| Trade Terms: | FOB,CIF |
| Min Order: | 100/Piece |
| Pay Type: | L/C,T/T,Paypal,Money Gram,Western Union |
| Prod Model: | 110cc |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Transmission: | CVT ( L/N/R ) |
| Rear Suspnesion: | Independent Suspension |
| Gearshift: | Shaft |
| Switch: | 2WD /4WD Switch Button |
| Rim: | Alloy or Steel |
| Color: | Red , Orange, Black, Camo, |
| Name: | 110cc 4X4 CVT Efi ATV with EEC Approval |
| Transmission Type: | Automatic |
| Engine Type: | 4 Stroke |
| Structure: | Without Door |
| Displacement: | 110CC |
| Transmission System: | Shaft Drive |
| Fuel: | Gas / Diesel |
| Brake Type: | Disc Brake |
| Certification: | EPA |
| Condition: | New |
| Maximum Speed: | 55km/H |
Product Description
110cc 4x4 CVT EFI ATV with EEC approval 2016. Max speed 65km/h, with CVT transmission.It can use for farmer, utility and play.ATV can pull the atv trailer for work. same like car. fast speed and work at your spare time.
| Displacement | 50cc/70cc/90cc/110cc |
| Engine Model | LC147FMF (Loncin engine) |
| Size | 1420mm×860mm×910mm |
| Front Tread | 640mm |
| Rear Tread | 680mm |
| Front axes weight | 72kg/161.71LBS |
| Rear axes weight | 82kg/180.77LBS |
| Wheelbase | 830mm |
| Compress Ratio | 9.1:1 |
| Bore × Stroke (mm) | 52.4×49.5 |
| Ground clearance | 160mm |
| Seat height | 620mm |
| Transmission System | chain drive |
| Engine type | single cylinder, air-cooled, 4 stroke |
| Ignition | CDI |
| Speedo | no |
| Head light | yes |
| Rear light | yes |
| Turning light | no |
| Horn | yes |
| Start mode | electric start |
| Clutch | Automatic |
| Front shock | spring |
| Rear shock | spring |
| Front brake | manual disk brake |
| Rear brake | foot hydraulic disk brake |
| Front and rear tyre air pressure (KPa) | 69Kpa |
| Max. speed | 55km/h |
| Max. loading capacity | 62kg/136.67LBS |
| Tank capacity | 3.4L |
| Turning degree(degree) | ±23 |
| Min. Turning radius(mm) | 2500mm |
| max climbing ability | 17 |
| Brake performance | ≤7m/30Km/h |
| Max. vox db(A) | ≤88 |
| parking performance(°) | ≥15 |
| Initial Speed(S) | ≤30 |
| Surpassing Performance(S) | ≤30 |
| Breaking Stability | ≤2.5 |
| Front Wheel | 16×8-7 |
| Rear Wheel | 16×8-7 |
| Max Power | 5.5/8000kw/(r/min) |
| Max torque | 6.5/5500~6000N.m/(r/min) |
| Min fuel consumption | ≤367g/KW.h |
| spark plug Model | A7RTC |
| Fuel | 90# |
| Battery | 12V/5AH |
| Carton dimensions | 1320×780×660mm |
| N.W. | 92KG/202.82LBS |
| G.W. | 110KG/242.50LBS |
| Container Quantity | 36pcs/20'GP, 108pcs/40'HQ |
| DELIVERY TIME | 30 days after receiving 30% deposit |
