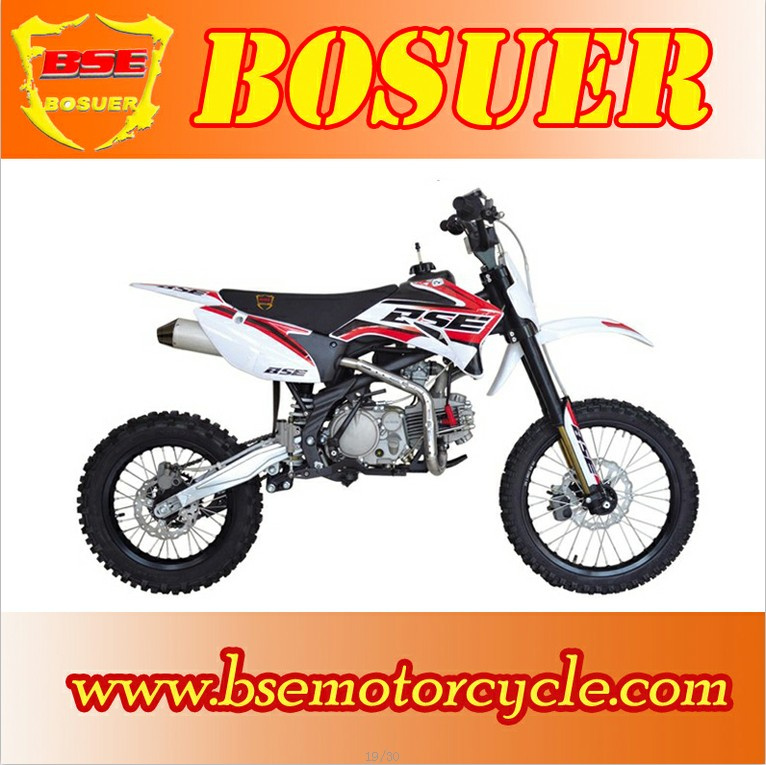

Dirt Bike (BSE-PH10B 1)
| Price: | US $ 100-1000/Piece |
|---|---|
| Trade Terms: | FOB |
| Min Order: | 100/Piece |
| Pay Type: | T/T |
| Prod Model: | BSE-PH10B 1 |
|---|---|
| Markets: | South America,Eastern Europe,Mid East,Eastern Asia,Western Europe |
| Starting System: | Kick System |
| Certification: | CE |
| Engine: | 4 Stroke |
| Displacement: | 126-250CC |
| Condition: | New |
| Fuel: | Gas / Diesel |
| Cylinder Quantity: | 1 |
Product Description
Dirt Bike (BSE-pH10B) Bosuer 2011 High Performance New Model. Specially design For off-Road Racing.SPECIFICATIONS Measurements are in (inches), (cm), (mm) and (kg)
TITAN Engine: Titan, 160CC oil-cooled. Single cylinder, four stroke, Kick start only, manual clutch.
Bore X Stroke: > 60mm X 57mm
Compression Ratio: 10.0: 1
Max power 10.2KW/9500r/min
Fuel type: ≥ 90#(GB484-89)
Min Fuel Consumption ≤ 367g/KW. H
Max torquer: 11.5N. M/7500r/min
Transmission system Close Ratio 4 speed Manuel clutch
Ignition mode CDI electronic ignition
Suspension system Front: 735mm length, light weight forks M/Separate Comp and Reb Adjustment, Travel 190mm, new style head cover.
Rear: 375mm length, Max Travel 95mm, 3 adjusting function in high and low speed.
Brake system Front - hydraulic disc brake with double pistons. 220MM DISC
Rear- hydraulic disc brake with single piston. 190MM DISC
Maximum load 353lb/(160kgs)
Tank Capacity 0.9gal(us)/(3.4 L)
G. W/N. W 187lb/165lb(85kgs/75kgs)
Carburetor MIKUNI VM-26
Dimensions 1660mmx760mmx1060mm
Carton size 1490mmx 400mm x 760mm
Container 64PCS/20' FT 135PCS/40'FT 135PCS/40HQ
Seat Height 810~820mm
Wheel base 1215± 5mm
Ground Clearance 290mm
Engine and Rear sprocket 15/41 tooth, KMC 428 Chains.
Rim size Front 2.50-14; Rear 3.0-12
Tire size Front 60/100-14 Rear 80/100-12
Features of the 2011 new Bike NEW Three girders HD tensile Frame, Fashion Appearance. Chain guard, chain slider, rubber pad of pressing chains, engine bottom cover are all designed special for this bike, matching well.
TTR plastic kits. Aluminium handlebar, Reducing and low style. CNC triple clamps, 45/48mm CRMO Steer Column Newest design frame with 3 girders, reasonable struction. Newest design single swingarm, steel. New cast steel linkage, very strength. Newest aluminium fuel tank cap Stainless steel footpegs New design footbrake pedal, up bending easy for adjusting All exerted hexagon socket head cap screws are stainless, up to the standard 8.8 grade.
Zhejiang Bosuer Motion Apparatus Co. Ltd specializes in developping and manufacturing quality dirt bikes. By adoptting production management ISO9001, the company has built quality control system, quality assurance system. Base on these quality systems, the company is able to manufacture quality products to guarantee consuer maximize their using demand.
With the experienced engineering team and high technic tooling and machining equipment, the co mpany creatively develops new design dirt bike under annual new products development plan. Up to now, the company has developed series of dirt bike from 50cc to 250cc, the products apply to young kids until professional racers, it make consumers have more choice with their own interests.
All new products were tested seriously since it was being made. The company build his own racing team, the racer not only participate all China racing contest with BOSUER brand, but also has responsibility to test all new products schedually, ensure products meet the condition for using and also modify every parts to be the function by using.
The company products and BOSUER brand have been accepted by customers all of the world, and
got good reputation from consumers. For meeting different market standard of the products, we have
applied EEC and CE certificate for EU market, and also the products are manufactured to be suitable
for Australia market standard and EPA standard for USA market. We are interested in cooperating with all customers build with their own standard.
We, Zhejiang Bosuer Motion Apparatus Co., Ltd. is not only build products to you as a business partner, but also we are willing to build a long term friendships with all of you, to make a happy life.
