Specifications
Prod Model: |
PH10 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
140: |
14/12 |
Starting System: |
Kick Start and Electric Start |
Certification: |
CE |
Engine: |
4 Stroke |
Displacement: |
126-250CC |
Condition: |
New |
Fuel: |
Gas / Diesel |
Cylinder Quantity: |
1 |
Product Description

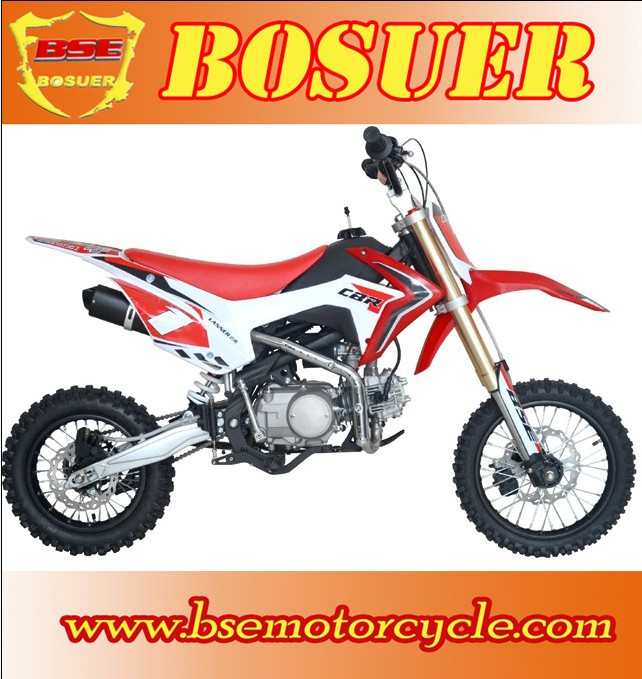

2014 Honda CRF110 plastics, BSE high strengthened cast steel frame
ENGINE
Engine type: 125CC, single cyclinder, 4-stroke, air cooled
Bore X Stroke: 54X54mm
Compression Ratio: 9.2: 1
Max power6.5kw/7500rpm
Min Fuel Consumption<=367g/KW. H
Max torquer: 8.0N. M/ 5000rpm
Transmission systemall up gear, N-1-2-3-4
Lgnition modeCDI electronic ignition
ClutchManual, wet multiple
CHASSIS
FrameHigh strengthened cast steel, central cradle, 3-spar chromolly steel main body
Swing arm: Heavy duty steel swing arm
Suspension system Front fork: 790mm length up-side-down suspenssion, non-adjustable
Rear shock: 325mm length high performance, non-adjustable
Brake systemhydraulic disc brake, special designed disc for sufficient brake, disc size: Front: 220mm, rear: 190mm
Maximum load187lb/(85kgs)
Tank Capacity0.9gal(us)/(3.4L)
G. W/N. W154lb/143lb(70kgs/65kgs)
CarburetorKF PZ22
Dimensions(L*W*H)1630X760X1090mm
Carton size1620X385X735mm
Container54units 20FT FCL 129units 40FT FCL 150units 40HQ FCL
Seat Height31in/790mm
Wheel base48in/1215mm
Ground Clearance11.4in/290mm
Engine and Rear
Sprocket 16/39T, 420# Chains.
Rim SizeFront 1.40-14/ Rear 1.85-12
Tire sizeFront/Rear: 60/100-14 80/100-12 BSE Knobby tire
