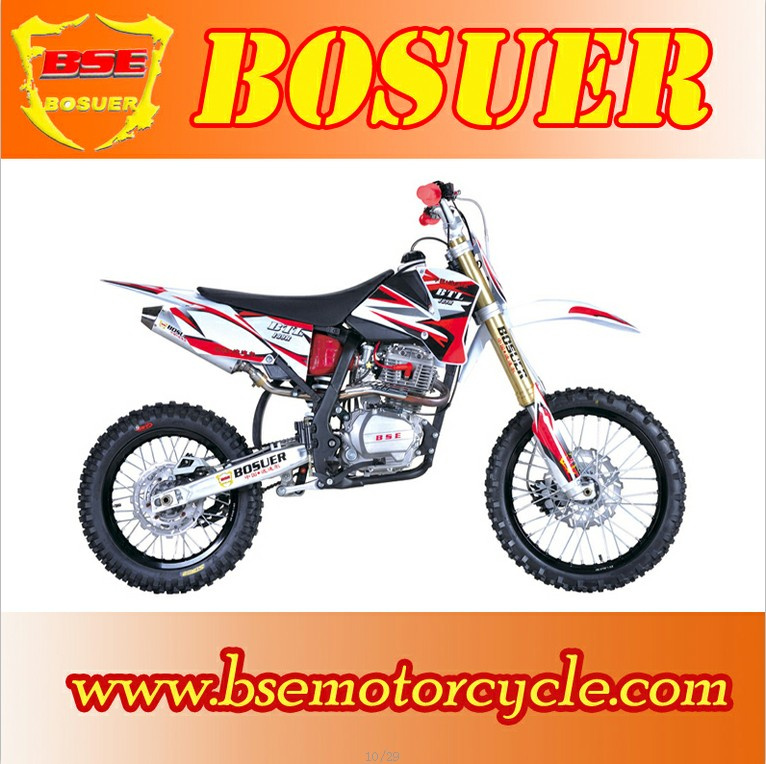

Specifications
Prod Model: |
BTL189R |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
189cc: |
Dirt Bik |
Starting System: |
Electric Start |
Certification: |
CE |
Engine: |
4 Stroke |
Displacement: |
126-250CC |
Condition: |
New |
Fuel: |
Gas / Diesel |
Cylinder Quantity: |
1 |
Product Description
Engine: 189CC, single cyclinder, 4-stroke, air cooled, electric start
Bore X Stroke: 65.5x56.2mm
Compression Ratio: 11.6: 1
Max power23HP/13000rpm
Min Fuel Consumption<=354G/KW. H
Max torquer: 18N. M/10600rpm
Taansmission system5 speed, international gear
Lgnition modeCDI electronic ignition
Suspension system
Front fork: Size: 54/60-880mm, up-side-down type, rebound and compression ajust, 275mm travel
Rear shock: Size: 385mm, adjustable
Brake systemhydraulic disc brake, special designed disc for sufficient brake, disc size: Front: 260mm, rear: 240mm
Maximum load386lb/(175kgs)
Tank Capacity0.9gal(us)/(5.2L)
G. W/N. W238lb/227lb(108kg/103kg)
CarburetorPZ30
Dimensions(L*W*H)1940X790X1160mm
Carton size1820X460X830mm
Container40units 20"FCL 80units 40" FCL 120units 40HQ FCL
Seat Height35in/880mm
Wheel base55in/1340mm
Ground Clearance12in/320mm
Engine and Rear sprocket
15/41T, 428# Chains.
Rim SizeFront 1.60-19/ Rear 1.85-16
Tire sizeFront/Rear: 80/90-19 100/90-16 CST tire
