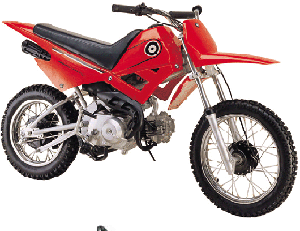

Dirt Bike (90py)

Specifications

Prod Model:	90PY

Product Description

Parameter of Engine
Engine Model:149FMF
Engine Style:Single Cylinder, Air-cooled, 4-stroke
Bore x Stroke:49x41.4(mm xmm)
Ignition: C.D.I.
Lubrication:Pressure/ Splash
Max.Power:4.4/7000(Kw/r/min)
Max.Torque:5.8/5500(N.M/r/min)
Impression Ratio:8.8 :1
Starting Type:KICK
Max.Speed:70(Km/H)
Oil Consumption:365(g/Kw.H)
Max.Noise:80(dB)
Clutch Automatic/Separated
Transmission:4 Forward Gear
Parameter of Motorcycle
Dimension :1550x640x880(LxWxH mm)
Wheel Base:1150(mm)
Gross Weight:75(Kg)
Dry Weight:60(Kg)
Transmission Type Chain Drive
Tyre and Rim:F.:2.75-12 / R.:3.0-14
Brake Style:F.Drum / R.Drum
Absorber Style
Displacement:85.9ml
Oiltank Capacity:5.8(L)
Climbing Ability:25'
Max.Load:80(Kg)
Packing Vol:1380x370x750(LxWxH mm)
Container Capacity :40':150Unit;20':75 Unit;40'HQ:150Unit
