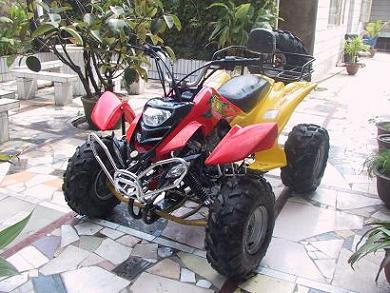

ATV New Item 110CC ATV

Specifications

Prod Model:	150ST-3D

Product Description

Parameter of Engine
Engine Model: 152FMH
Engine Style: Single Cylinder, Air-cooled, 4-stroke
Bore x Stroke: 52. 4 x49. 5(mm xmm)
Ignition: C. D. I.
Lubrication: Pressure/Splash
Max. Power: 4. 8/8000(Kw/r/min)
Max. Torque: 6. 5/6500(N. M/r/min)
Impression Ratio: 9: 1
Starting Type: Electric
Max. Speed: 50(Km/H)
Oil Consumption: 365(g/Kw. H)
Max. Noise: 80(dB)
Clutch: Automatic/Separated
Transmission: 4 Forward Gear 3 Forward Gear and 1 Reverse Gear
Parameter of Motorcycle
Dimension : 1550x860x950(LxWxH mm)
Wheel Base: 1050(mm)
Gross Weight: 152(Kg)
Dry Weight: 127(Kg)
Transmission Type Chain
Tyre and Rim: F.: 19x7-8/R.: 18x9. 50-8
Brake Style: F. Drum/R. Dick
Absorber Style: F.: Independent Hanging/R.: Middle Absorber
Displacement: 108ml
Oiltank Capacity: 7. 8(L)
Climbing Ability: 30
Max. Load: 95(Kg)
Packing Vol: 1480x835x780(LxWxH mm)
Container Capacity : 40': 66 Unit; 20': 30 Unit
