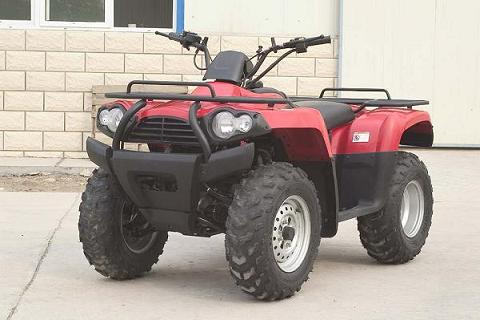

Home Chongqing Xinben Motor Co., Ltd. ATV (350ST)
Specifications
| Prod Model: | 350ST 4WD |
|---|
Product Description
Item descriptionVehicle
Dimension(lxwxh):1980x1080x1190mm
Wheelbase:1230mm
Distance between front wheels:855mm
Distance between rear wheels:870mm
Ground clearance: 209mm
Seat height:860mm
Dry weight:250kgs
Gross weight:300kgs
Fuel tank:10l
Max speed:90km/h
Brake system:Front/rear disk/disk
Gearshift mode:Automatic clutch, five speed, one neutral with inside reverser gear
Transmission mode shaft
Drive system:4wd
Steering angle:30º
Tire front:24x8-12
Tire rear:24x9-11
Engine
Engine model:169f-st
Efficient capacity:329.1ml
Engine type:4-stroke,single-cylinder
Cooling system:Air-cooled + oil-cooled
Rated power and rotate speed:12kw/5200rpm
Max torque and rotate speed:23n.M/4000rpm
Economical oil consumption (l/100km) 5
Electrical
Battery:12v-12ah
Starting system:Electric/hand-pull
Ignition: dcdi
Package
Package mode:Packed by iron framework, then in carton
Packing size (lxwxh):2100x1150x1100mm
Qty's be put into container:10pcs/20'or 22pcs/40'
