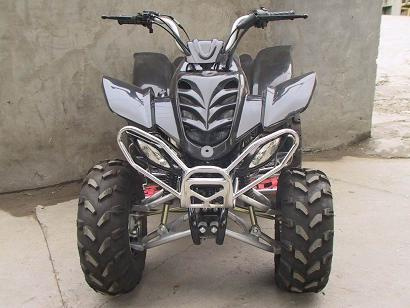

150CC Water Cooled ATV

Specifications

Prod Model:	150ST-W

Product Description

Parameter of Engine:
Engine Model: 162FMJ
Engine Style: Single Cylinder, Water-cooled, 4-stroke
Bore x Stroke: 62x57. 8(mm xmm)
Ignition: C. D. I.
Lubrication: Pressure/ Splash
Max. Power: 9. 5/8000(Kw/r/min)
Max. Torque: 10. 5/6000(N. M/r/min)
Impression Ratio: 8. 8: 1
Starting Type: Electric
Max. Speed: 55(Km/H)
Oil Consumption: <365(g/Kw. H)
Max. Noise: 80(dB)Clutch
Transmission: 5 speed, Rotary 4 Forward Gear and 1 Reverse Gear
Parameter of Motorcycle
Dimension : 1500x850x960(LxWxH mm)
Wheel Base: 1050(mm)
Gross Weight: 173(Kg)
Dry Weight: 151(Kg)
Transmission Type: CHAIN
Tyre and Rim: F.: 19x7-8/R.: 18x9. 50-8
Brake Style: F. Drum/R. Dish
Absorber Style: F.: Independent Hanging/R.: Middle Absorber
Displacement: 149. 5ml
Oiltank Capacity: 4. 5(L)
Climbing Ability: >25'
Max. Load: 95(Kg)
Packing Vol: 1480x835x780(LxWxH mm)
Container Capacity 40': 66Unit; 20': 30Unit
