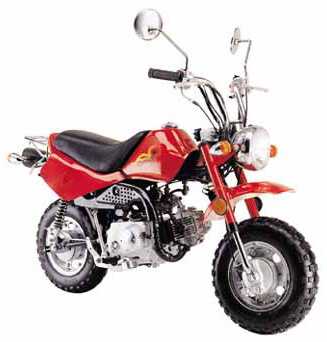

Dirt Bike (50QGY-II)

Specifications

Prod Model:	50QGY(II)

Product Description

Parameter of Engine
Engine Model:147FMB
Engine Style:Single Cylinder, Air-cooled, 4-stroke
Bore x Stroke:47x41.4(mm xmm)
Ignition: C.D.I.
Lubrication:Pressure/ Splash
Max.Power:3.0/7000(Kw/r/min)
Max.Torque:4.2/5500(N.M/r/min)
Impression Ratio:8.8 :1
Starting Type:Kick
Max.Speed:45(Km/H)
Oil Consumption:365(g/Kw.H)
Max.Noise:80(dB)
Clutch Automatic / Separated
Transmission:4 Forward Gear
Parameter of Motorcycle
Dimension :1340x600x840 (LxWxH mm)
Wheel Base:1150(mm)
Gross Weight:75(Kg)
Dry Weight:60(Kg)
Transmission Type Chain Drive
Tyre and Rim:F.:2.5-14 / R.:2.5-14
Brake Style:F.Drum / R.Drum
Absorber Style
Displacement:49ml
Oiltank Capacity:4(L)
Climbing Ability:25'
Max.Load:65(Kg)
Packing Vol:1180x380x670(LxWxH mm)
Container Capacity 40':180Unit
20':60 Unit
40'HQ:220 Unit
