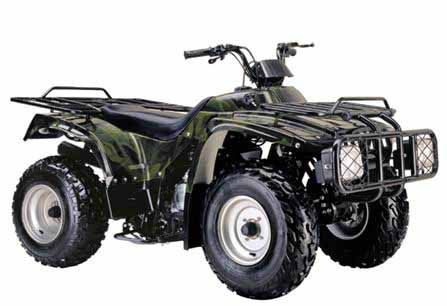

Home Chongqing Xinben Motor Co., Ltd. ATV (250ST-B)
| Prod Model: | 250ST-B |
|---|
Product Description
Parameter of EngineEngine Model 253FMM
Engine Style Double Cylinder, Air-cooled, 4-stroke
Bore xStroke 53x53(mm xmm)
Ignition C. D. I.
Lubrication Pressure/ Splash
Max. Power 13/8000(Kw/r/min)
Max. Torque 14. 5/5500(N. m/r/min)
Impression Ratio 9. 2: 1
Starting Type Electric
Max. Speed 70(Km/H)
Oil Consumption 365(g/Kw. H)
Max. Noise 80(dB)
Clutch Manual clutch
Transmission 5
Parameter of Motorcycle
Dimension 1990x1050x1180(LxWxH mm)
Wheel Base 1180(mm)
Gross Weight 243(Kg)
Dry Weight 215(Kg)
Transmission Type Shaft Drive& Reverse
Tyre and Rim F.: 23x7-10 / R.: 22x10-10
Brake Style F. Drum / R. Drum
Absorber Style F.: Independent Hanging
Displacement 233ml
Oiltank Capacity 8(L)
Climbing Ability 30'
Max. Load 200(Kg)
Packing Vol, 1980x980x970(LxWxH mm)
Container Capacity 40'H: 35Unit 20': 12 Unit
Chongqing Xinben Motor Co., Ltd. as great and high-reputed leading motor private enterprise in ChongQing China, especially manufacture motorcycle, engine etc. and their accessories for domestic and abroad market.
It covers over 396, 000 m2 and now owns 3 subsidiary factories after invested over RMB80, 000, 000 in China, meanwhile, there are more than 1100 workers and 100 engineers which are most of postgraduates! It has the capability of producing engine about 1, 000, 000 units and 200, 000 units motorcycle every year, so far it has exported products to more than 30 countries in Mid-east, Africa, America and Europe.
As modern motor manufacturers, under advanced technology and strong management, we now have 20 patent products which are all exported to oversea, like dirt bike, ATV, scooter, generator tricycle motorcycle etc. and our motorcycle products passed ISO9000 and CCC, and our generator products have passed EPA, EC, CE certifications, as first class in Chongqing!
Welcome to visit our website and we look forward to set long-term business relationship with you!
