Specifications
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Starting System: |
Kick System |
Certification: |
CE |
Engine: |
4 Stroke |
Displacement: |
126-250CC |
Condition: |
New |
Fuel: |
Gas / Diesel |
Cylinder Quantity: |
1 |
Product Description
SPECIFICATIONS Measurements are in (inches), (cm), (mm) and (kg)

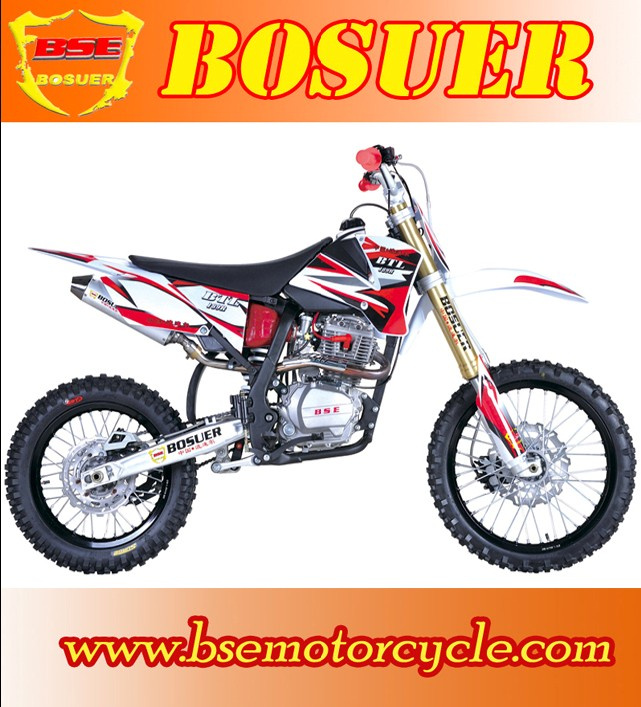

TITAN Engine: Loncin, 250CC SOHC Air-cooled. Single cylinder, four stroke, Kick start and E-Start, manual clutch.
Bore X Stroke: > 65.5 mm× 66.2 mm
Compression Ratio: 9.6: 1
Max power 12.0/ KW/9500r/min
Fuel type: ≥ 90#(GB484-89)
Min Fuel Consumption ≤ 354G/KW. H
Max torquer: 17.5N. M/5500r/min
Transmission system Close Ratio 5 speed manuel clutch
Suspension system Front: 840mm length, Inverted Fork w/ adj. Compression and Rebound on Each Leg, 210mm Travel.
Rear: 445mm length, 110mm Travel, Piggy Back Reservoir w/ adj. Compression and Rebound
Brake system Front - 260mm Rotor W/ Floating Caliper
Rear- 240mm Rotor W/ Floating Caliper
Maximum load 386lb/(175kgs)
Tank Capacity 1.9gal(us)/(7.2L)
G. W/N. W 234lb/216lb(106kgs/98kgs)
Carburetor MIKUNI VM-26
Dimensions 1970mmx810mmx1190mm
Carton size 1820mm x 460mm x 830mm
Container 30PCS/20' FT 64PCS/40'FT 95PCS/40HQ
Seat Height 890mm± 5mm
Wheel base 1400± 5mm
Ground Clearance 265± 5mm
Engine and Rear sprocket 14/48 tooth, HG 428 Chains.
Rim size Front: 70/100-19; Rear: 90/100-16
Tire size Front: 1.60x19; Rear: 1.85x16
Optional parts
Fr/1.60*21 & RR/2.15*18 Aluminium Rim
Fr/80/100-21 & 110/90-18 off road tyres
110/70-17 & 130/70-17 Motard tyres
Free asbestos engine
Aluminium rear swingarm
170CC Racing engine
150CC engine/125CC engine
More Features
CNC Aluminium Triple Clamps
Aluminium Fat handlebar
New cast steel linkage, very strength.
Stainless steel footpegs
