Specifications
Product Description

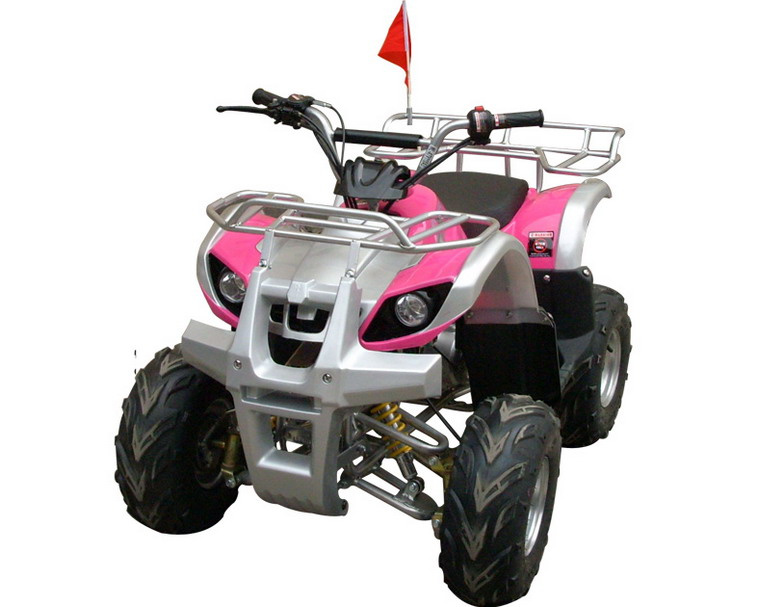

SPECIFICATIONS: ATV-29-110
CONFIGURE:
Colors available: *
Features: *
Decals (Y/N): Y
Tool kit (Y/N): Y
Remote start (Y/N): N
Remote engine stop (Y/N): N
Remote alarm (Y/N): N
Speed limiter (Y/N): Y
Assembly required: *
ENGINE INFO:
Engine type: Signal cylinder, 4-stroke
Engine brand: *
Displacement: 110cc
Cooling: Air cooled
Max horsepowe: 7.3hp/7500rpm
Max torque: 6.5n. M/5500rpm
Bore*stroke: 2.1*2.0 inches
Max speed: 31mile/h
Climbing ability: 12 degree
Ignition: C. D. I
Starting system: Electric
Battery: 12V3Ah
Carburetor brand: PZ19
Engine oil: SAE15W/40SF
Gear oil: *
CHASSIS ETC:
Clutch: Automatic
Transmission: *
Driveline: Chain-drive
Driving wheel: Rear wheel drive
Suspension, front/rear: Double a-arm/single a-arm
Brakes, front/rear: Drum/disc
Brake operation: Hand+foot
Tires, front/rear: 16*8-7
Fuel capacity/type: 0.5 gal
Weight, G. W. /N. W: 216/251.3 lbs
Max load: 220.5 lbs
DIMENSIONS:
Wheelbase: 31.5inches
OA L*W*H: 57.5*39.8*38.6 inches
Height to seat: 26.2 inches
Min ground clearance: 9.1inches
Carton size: 51.2*30.3*26.4inches
Shipping info: 108pcs/40HQ
